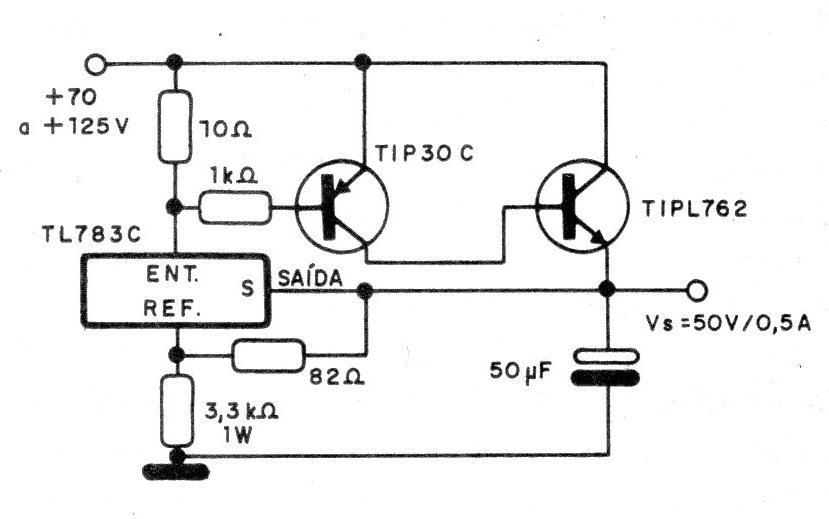

The circuit in the figure is suggested by Texas Instruments and can provide a current of up to 500 mA of output under voltage of 50 V. The base of the circuit is the Texas Instruments TL783C integrated high voltage regulator, which has an adjustable output of 1, 25 V to 125 V and internal protection against short circuits. This integrated is presented in a TO-220 enclosure and has a typical output regulation of 0.15%.
