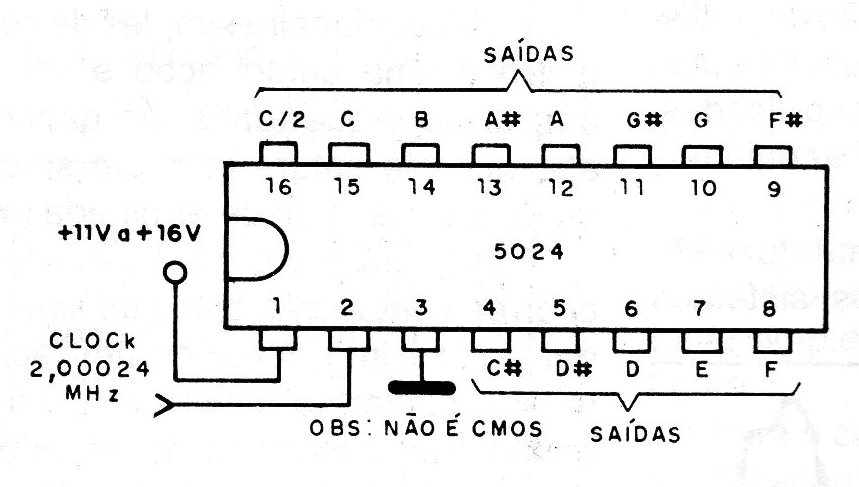

This integrated generates all the higher octave frequencies of a common keyboard when a clock signal of 2,00024 MHz is applied to its input. The integrated power can be made with voltages from 11 to 16 V and at each output we have a with a maximum current of 0.7 mA. Integrated CMOS like 4024 can be used on these outputs to obtain lower octave frequencies.
