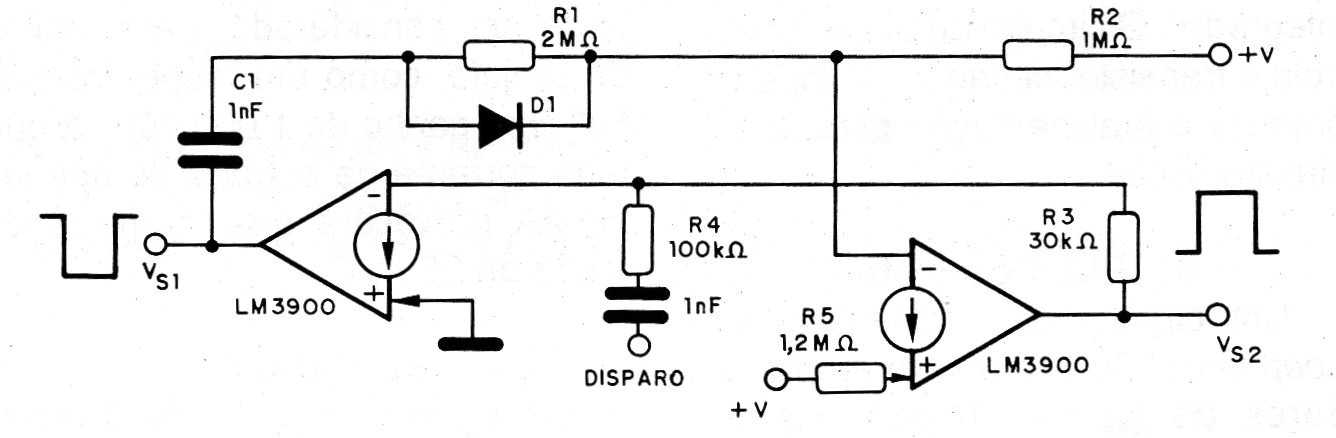

We can obtain a monostable circuit with two amplifiers, from the configuration shown in the figure. In monostable designs such as the LM3900, it is possible to make the output go high or low during timing. Remember that in this circuit, the maximum current available at the output is 10 mA.
| Clique na imagem para ampliar |
