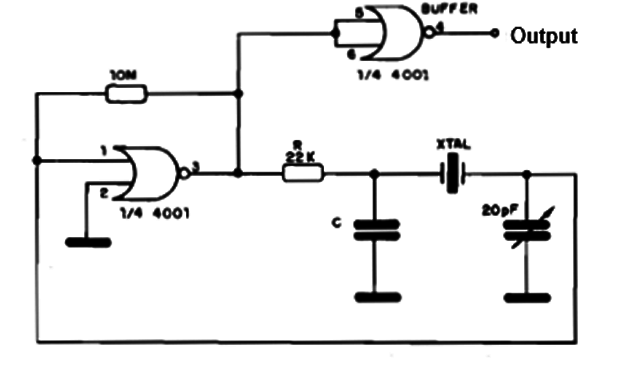

Frequencies up to 5 MHz can be poroduced by this circuit. The output is a square wave signal. The circuit can be powered from 3 V to 15 V sources. Positive power supply is at pin 14 and negative at pin 7.
CMOS 4001 Crystal Oscillator (CB888E)
- Details
- Written by: Newton C. Braga
