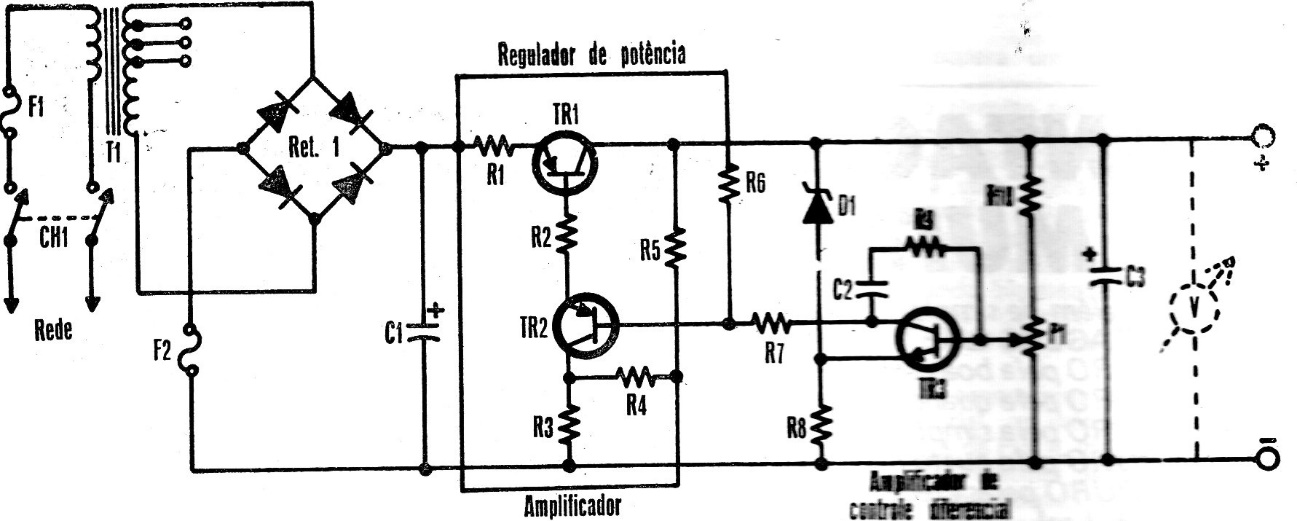

This circuit supplies voltages from 6 to 18 V with a maximum current of 2 A. We found it in a documentation from the 70's and it is characterized by having a protection circuit that disarms it when the current exceeds 1.5 A, the other value that can be changed by changing the sensor components.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
