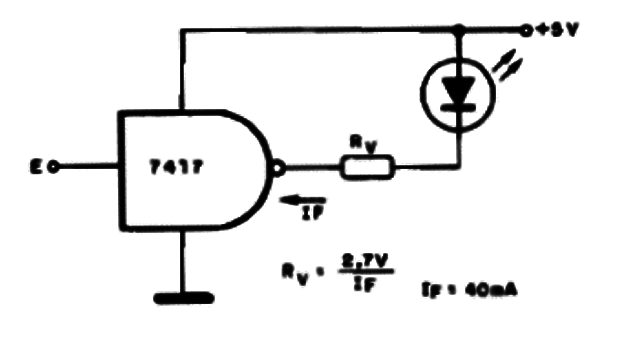

The current accross the LED as function of the resistor value is given by the formulas. The circuit is valid para LEDs with 2.7 V of voltage fall. The maximum output current for the TTL gate is 40 mA.
