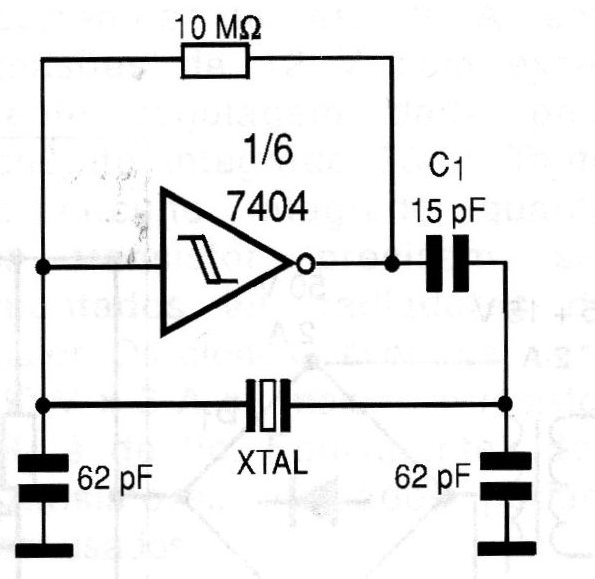

This oscillator makes use of one of the inverters of an integrated circuit 7404. With circuits of the normal series its frequency can go up to about 7 MHz. With ICs of the LS series the frequency can be much higher.
4 MHz TTL Oscillator (CB15760E)
