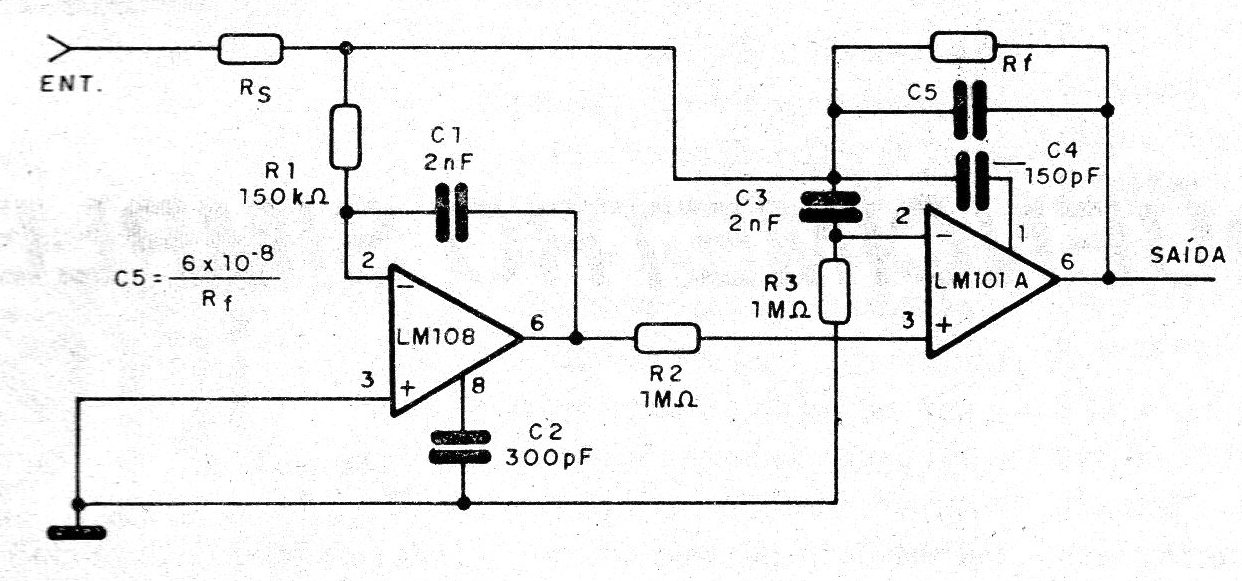

Integrated LM108 and LM101A are used in this fast adder with low input current, figure. The capacitor value is given by the expression in the diagram itself and to increase the speed, the LM101A has different gains, depending on the frequency range. The pass band of this circuit is 250 kHz for strong signals and 3.5 MHz for weak signals.
