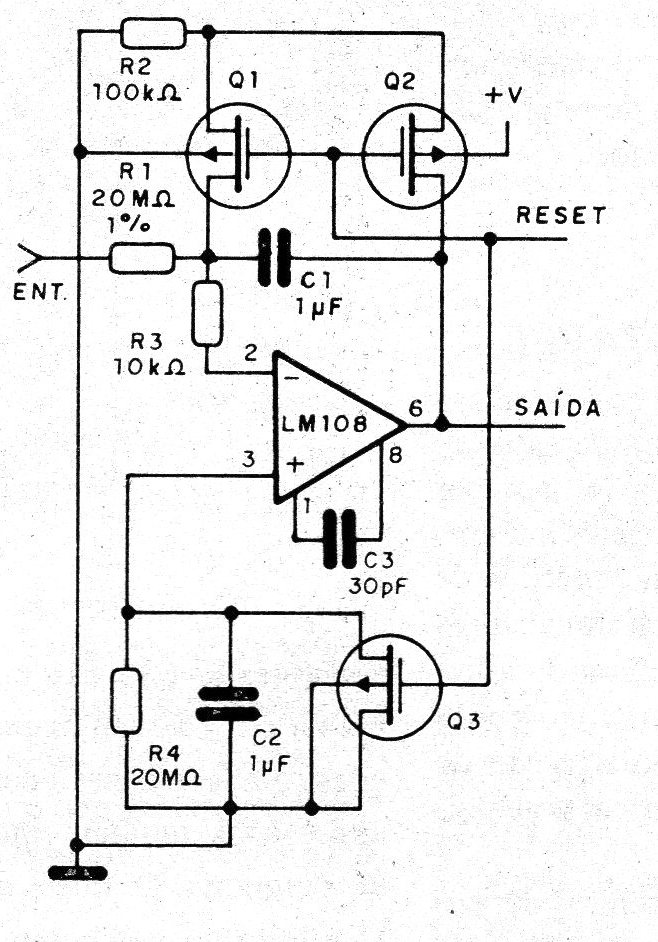

An integrator of exceptional qualities is obtained around an LM108, as shown in the figure. The field effect transistors used in this application must not have internal protection diodes. The drift of this circuit in the worst case is less than 500 uV / s in the range of -55 to + 125 ° C.
