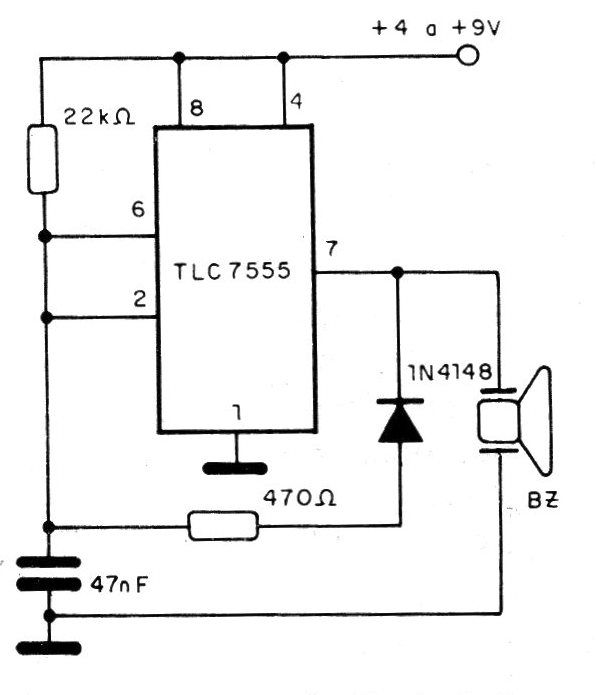

For an operation with extremely low consumption, generating an audio tone, we can use the circuit of the figure. In this circuit, the transducer is a low-consumption piezoelectric ceramic type. These transducers have a resonance frequency between 1 and 5 kHz, where the performance is higher, so it is interesting to have a tone adjustment so that this higher volume is achieved.
