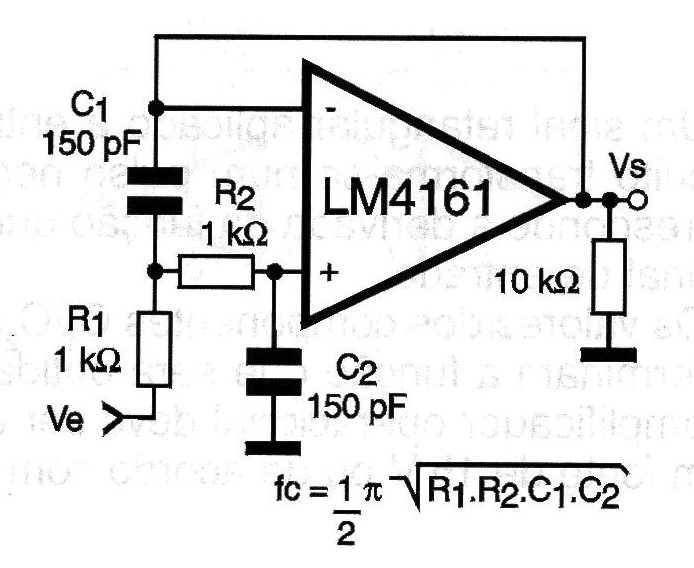

Signals below 1 MHz pass through this circuit, which is based on a high frequency operational amplifier. The formula for calculating the cut-off frequency as a function of the components is given next to the diagram. The relationship of values between resistors and capacitors must be maintained. The operational amplifier must be supplied with a symmetrical source.
