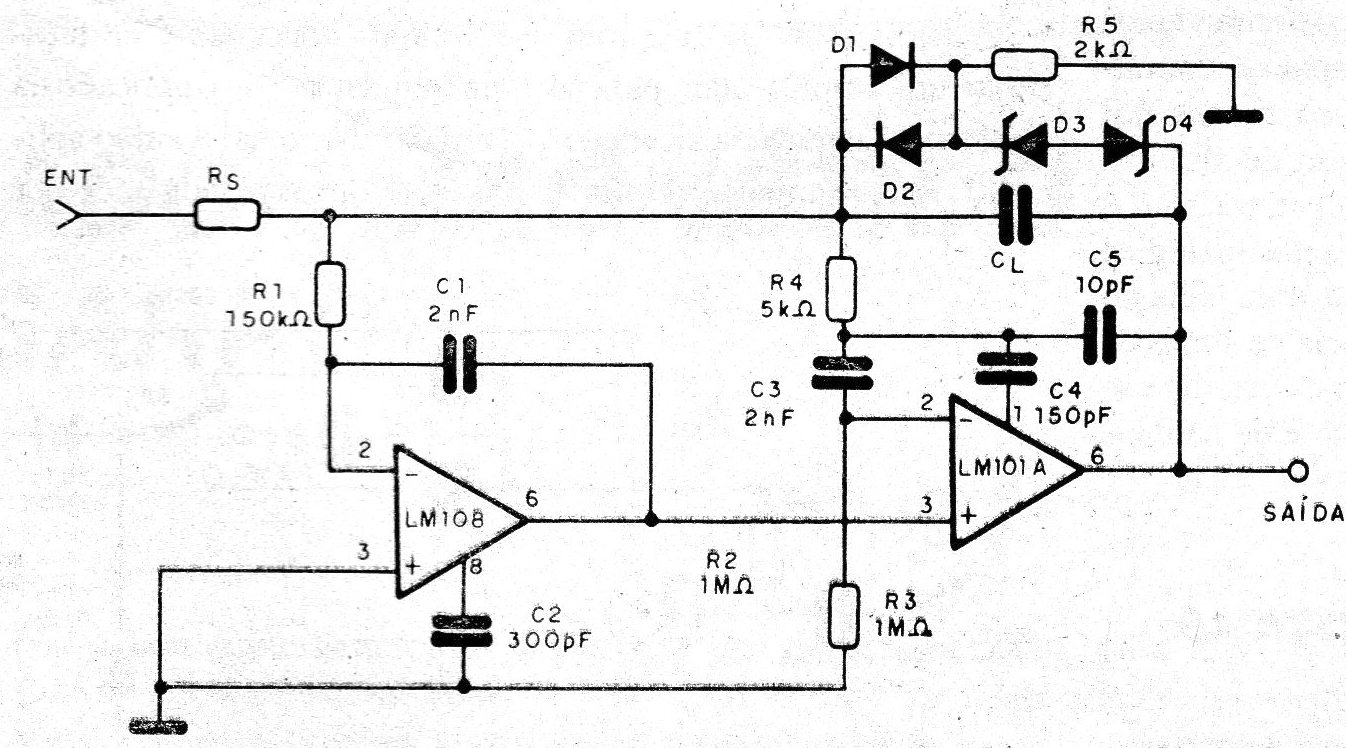

The integrator in the figure is characterized by low input current and is based on an LM101A. C1 determines the integration characteristics together with the opposing zener diodes, which are dependent on the characteristics of the signal strength worked. The power supply must be symmetrical and equivalent integrated can be used.
