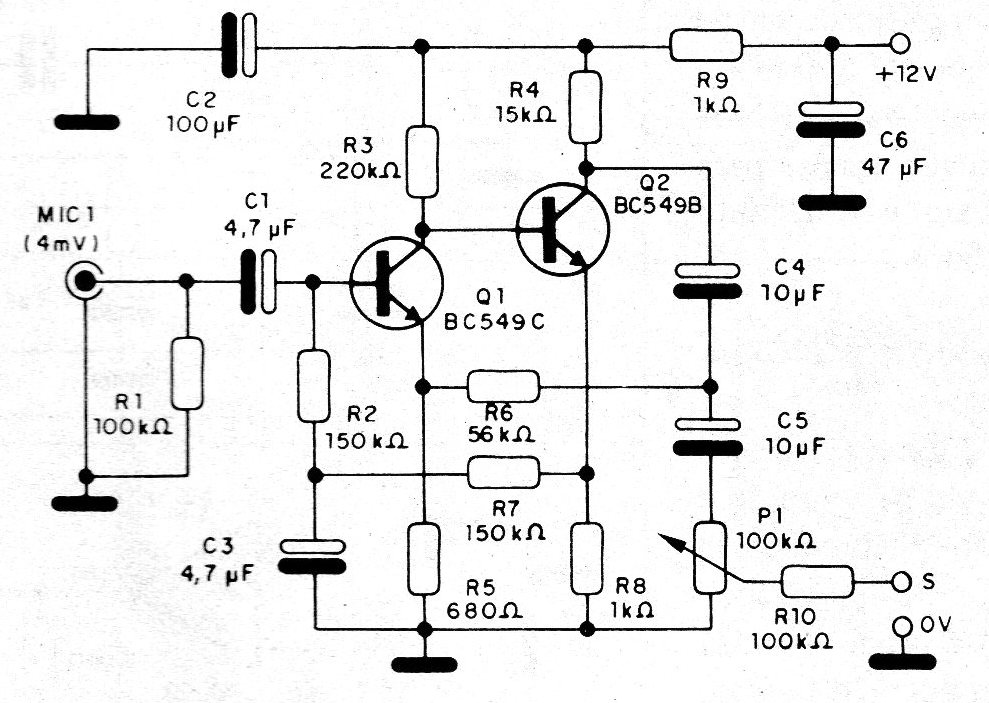

This circuit uses only two transistors, the first being low noise, being indicated for dynamic microphones. The consumption is very low, on the order of 1 to 2 mA, and the utmost care must be taken with the layout of the board and the shielding of the signal cables.
| Clique na imagem para ampliar |
