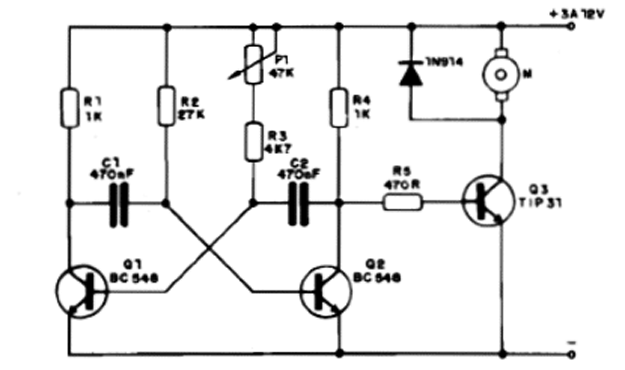

This circuit can control the speed of Motors up to 2 A and voltages in the range between 3 and 12 V. The transistor must be mounted on a heatsink and the capacitors can be changed to achieve the best performance.
PWM Motor Control for 3 to 12 V (CB899E)
- Details
- Written by: Newton C. Braga
