Stereo TV decoder (CB6208E)

Details
Written by: Newton C. Braga

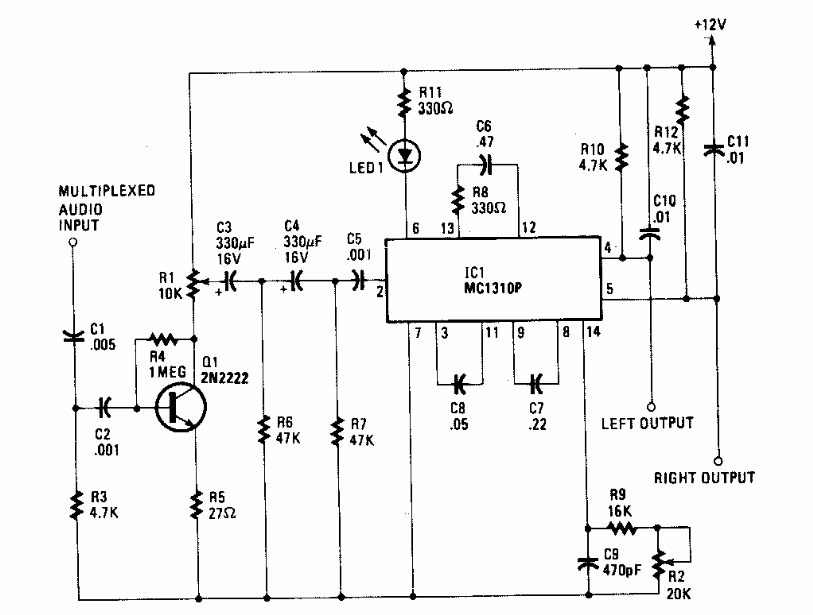

    This 80's circuitry decodes stereo signals used in analog TV at the time. The circuit can be used with VCRs to retrieve signals for passage on other media. The power supply is 12 V.




| Clique na imagem para ampliar |
