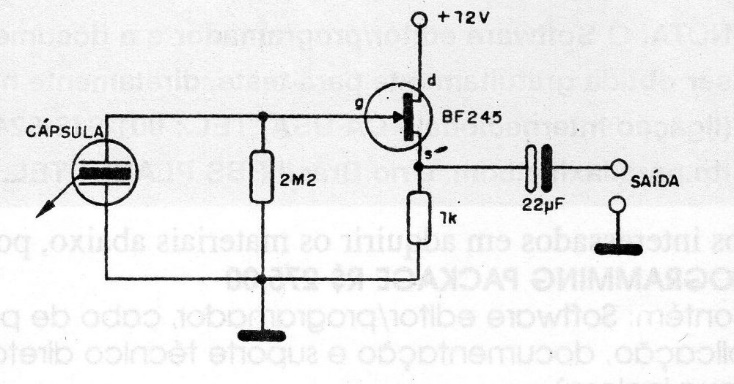

We show a channel of a simple preamplifier for ceramic capsules. This circuit is based on a very common junction field transistor. With it we can obtain a signal to excite almost any common audio amplifier. Precautions must be taken with the shielding of the signal input wires and with the filtering of the power supply so that no snoring occurs.
