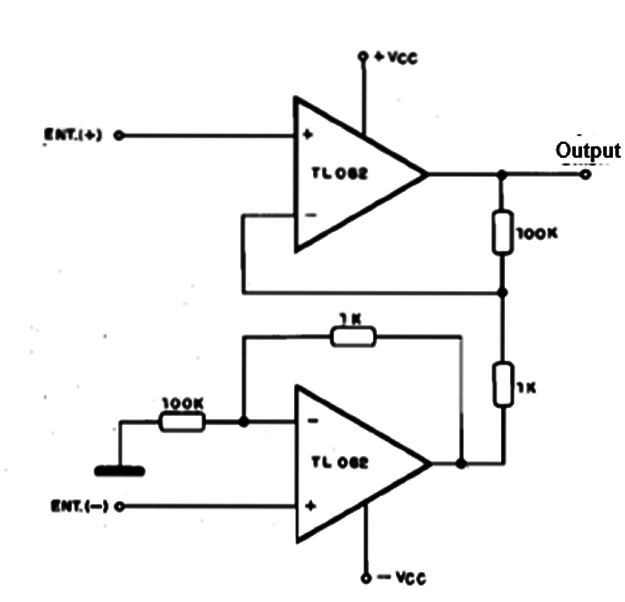

This very high input impedance circuit is suggested by Texas Instruments. The circuit can be powered from 3 to 12 V dual supplies. Other operational amplifier using FTEs can be used in this configuration.
Instrumentation Amplifier TL082 (CB901E)
- Details
- Written by: Newton C. Braga
