Peak Detector (CB15886E)

Details
Written by: Newton C. Braga

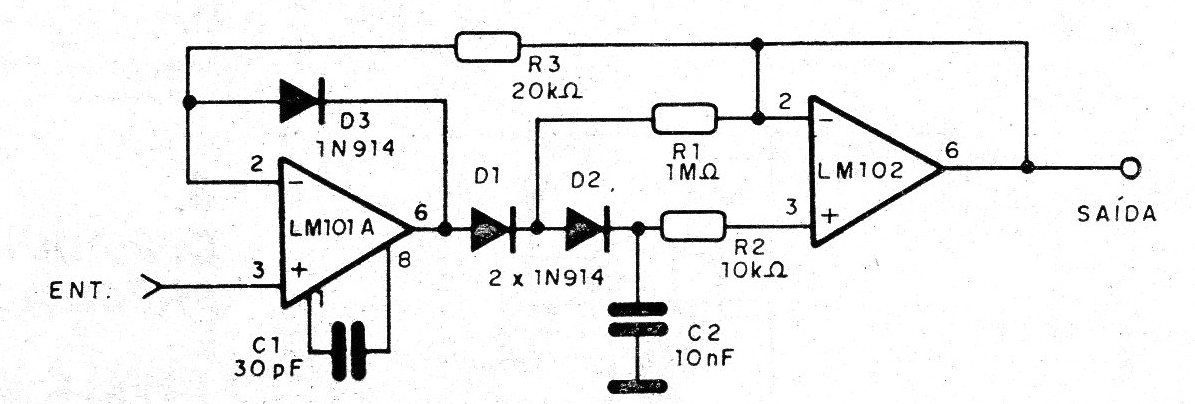

The circuit in the figure uses two operational amplifiers: an LM101A and an LM102. Diodes admit equivalents and resistors do not have to be accurate. The power supply must be symmetrical.
