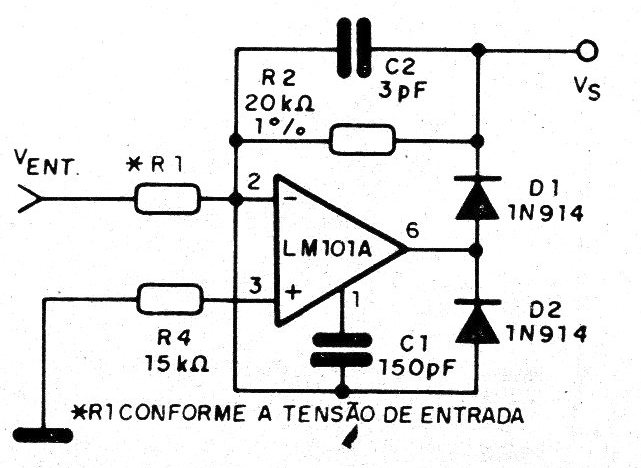

The circuit shown is based on the LM101A; diodes can be replaced with equivalents. Resistor R1 must have a tolerance of 1%. In this circuit, the rectified output voltage has twice the frequency of the input voltage and can also operate as a simple bender. The power supply must be symmetrical.
