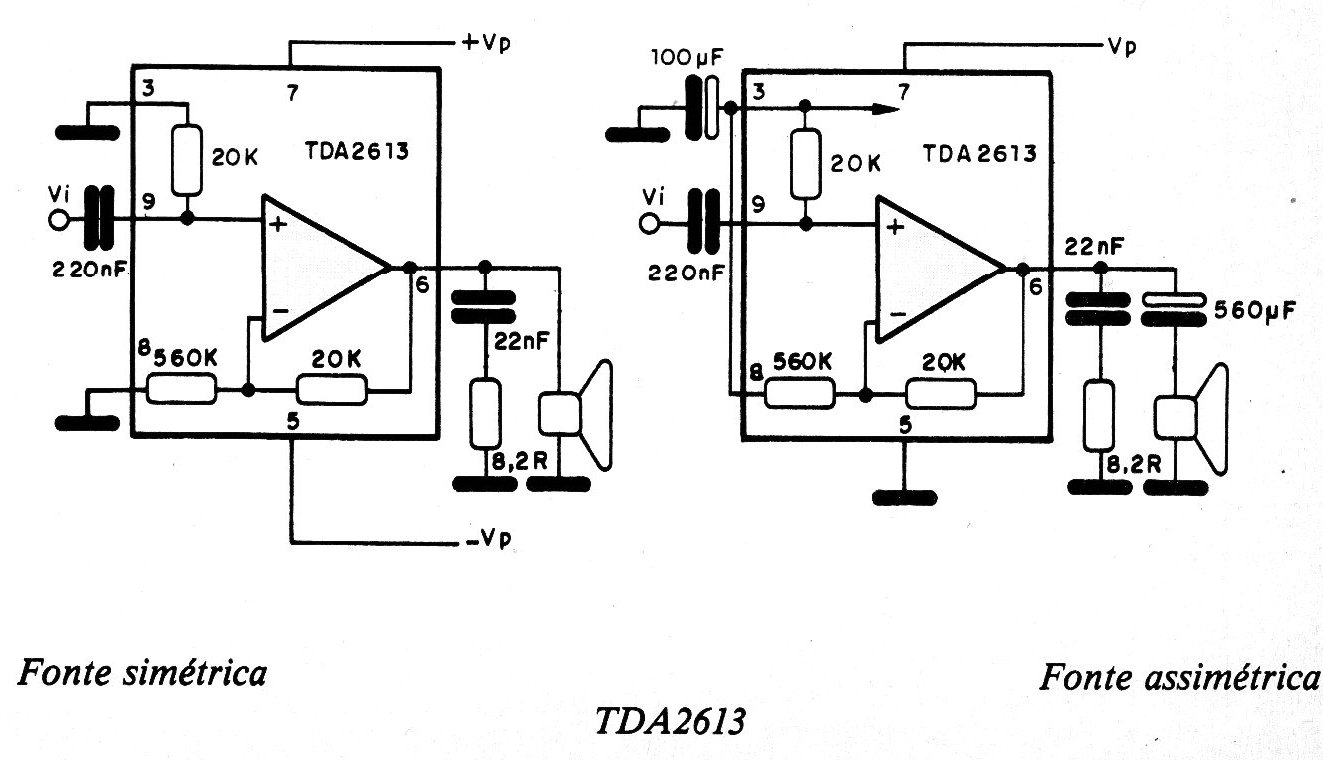

The TDA2613 is the mono version of the TDA1521A and has pinouts compatible with an integrated channel. It provides a power of 6 W of output, being indicated for equipment as televisions, radios. It can operate with a supply voltage between 15 and 40 V and is presented in a 9-pin medium-power SIL plastic housing. Among the main highlights for this integrated we have:
- Few peripheral components are needed
- It has mute input to eliminate clicks when turning the power on and off.
- Low offset voltage between the output and the ground, making it suitable for bridging.
- Complies with IEC 268 and DIN 45500 specifications for high fidelity.
- Output protected against short circuit.
- It has internal thermal protection.
- Fixed voltage gain with 30 dB feedback (24 V supply with 8 ohms load).
