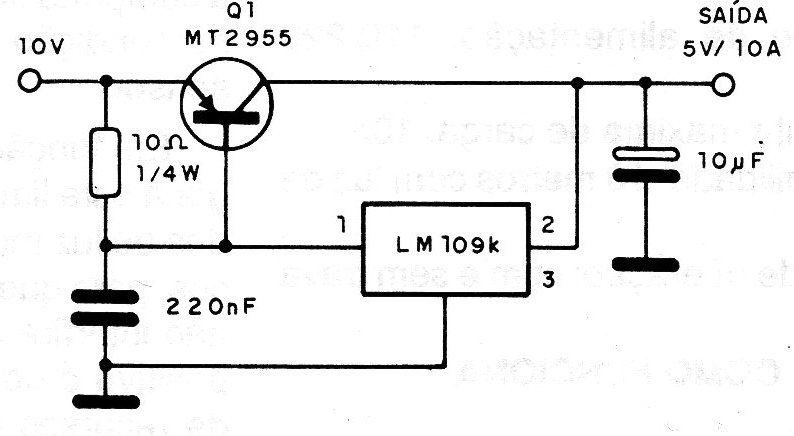

This powerful regulator, shown in the figure is for 5V (TTL) is suggested by Motorola and makes use of an integrated LM108k. The power transistor supports an equivalent that must be mounted on an excellent heat radiator. The 10 uF capacitor must be mounted next to the output and the 220 nF capacitor as close as possible to the integrated input.
