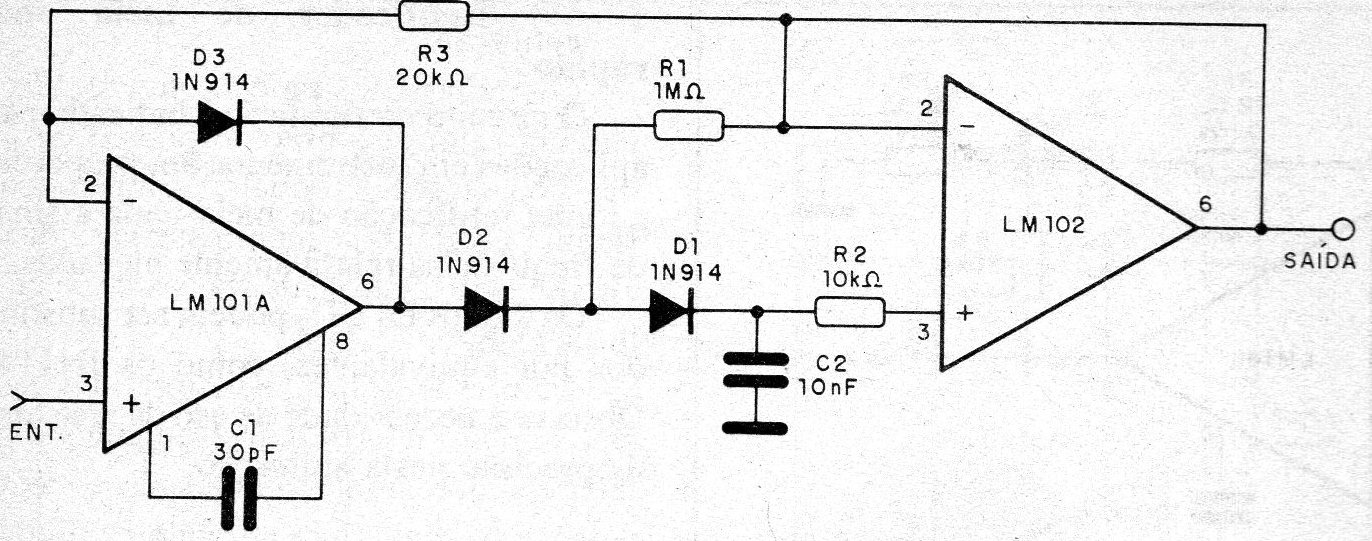

Two National Semiconductor operatives are used on this circuit indicated for instrumentation applications. The diodes and the operational ones have equivalents, and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Peak Detector with Operational (CB15808E)
- Details
- Written by: Newton C. Braga
