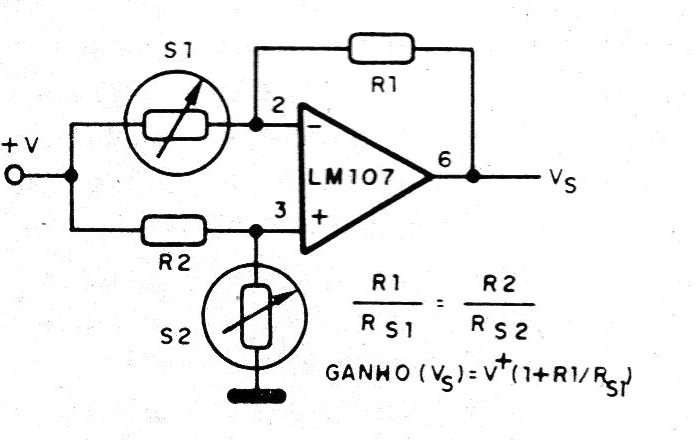

Using only one LM107 operational amplifier, National Semiconductor suggests the circuit in the figure for applications with resistive transducers. The characteristics of the circuit are given in the formulas next to the diagram. Note that the relationship between R1 and the resistance of sensor 1 determines the gain of the circuit, together with the supply voltage.
