NTC Simple Thermometer (CB15789E)

Details
Written by: Newton C. Braga

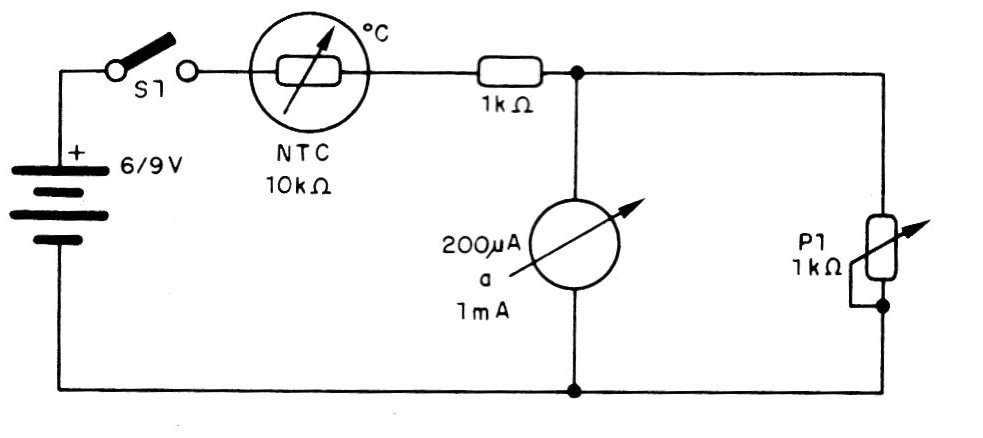

In the figure we have a simple thermometer with NTC, using an analog current indicator. The adjustment is made in the trimpot and the power is done by batteries.
