DC Motor Control with Direction Change (CB913E)

Details
Written by: Newton C. Braga

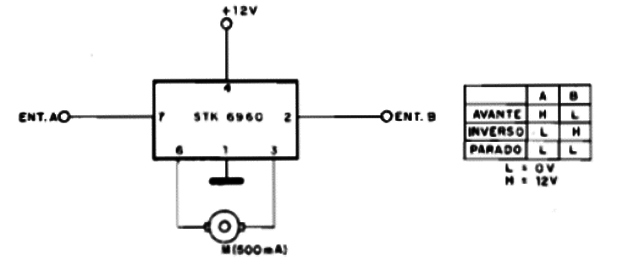

Up to 0.5 A DC motors can be controlled by this circuit. Direction change is achieved by a logic control. 12 V motors can ve controlled by this circuit. This circuit can be used as a shield for microcontrollers.
