Negative Voltage Comparator LM3900 (CB15623E)

Details
Written by: Newton C. Braga

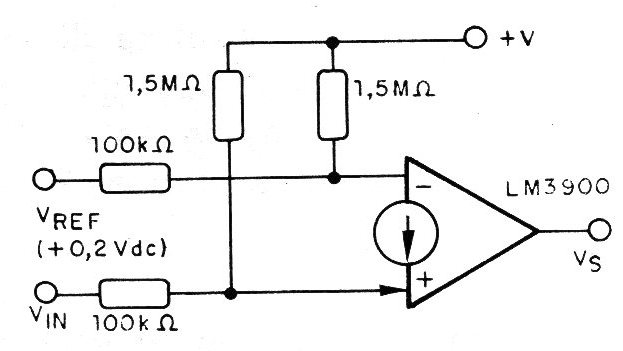

The circuit in the figure is a comparator for negative voltages, and a pair of polarization resistors must be added. If properly polarized, there is no limit to the value of the negative input voltages.
