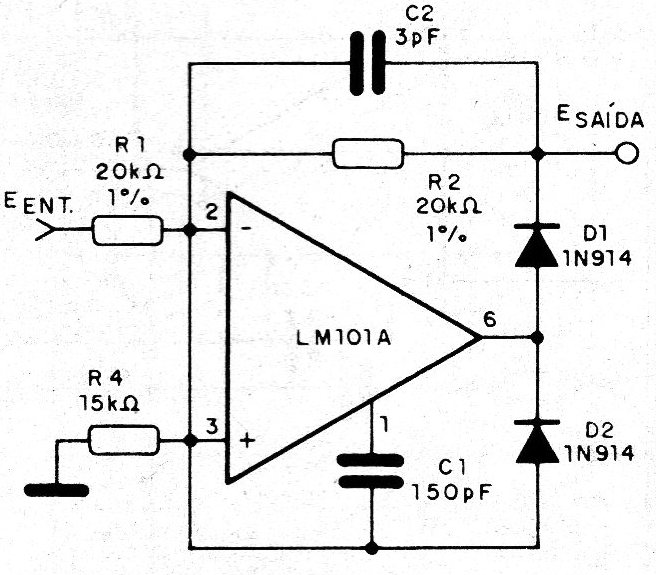

This is a rectifier for small intensity signals, and equivalent operational amplifiers can be used. The circuit is suggested by National Semiconductor and the power supply must be symmetrical. Diodes also admit equivalents.
| Clique na imagem para ampliar |
