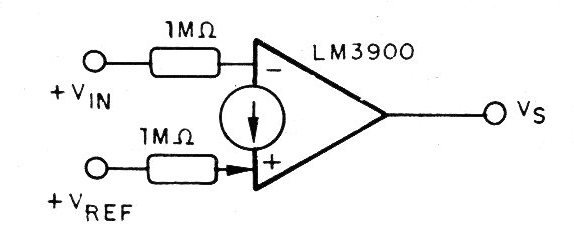

The amplifiers of the LM3900 can also be used as voltage comparators in several projects. The first circuit we present, shown in the figure, is for positive input voltages. For a satisfactory operation of this circuit, the reference voltage (Vref) must be greater than VBE, and the input resistor must be large enough, so that the current does not exceed 200 uA, whatever the voltage used.
