LED Indicator for Soldering Irons (CB16836E)

Details
Written by: Newton C. Braga

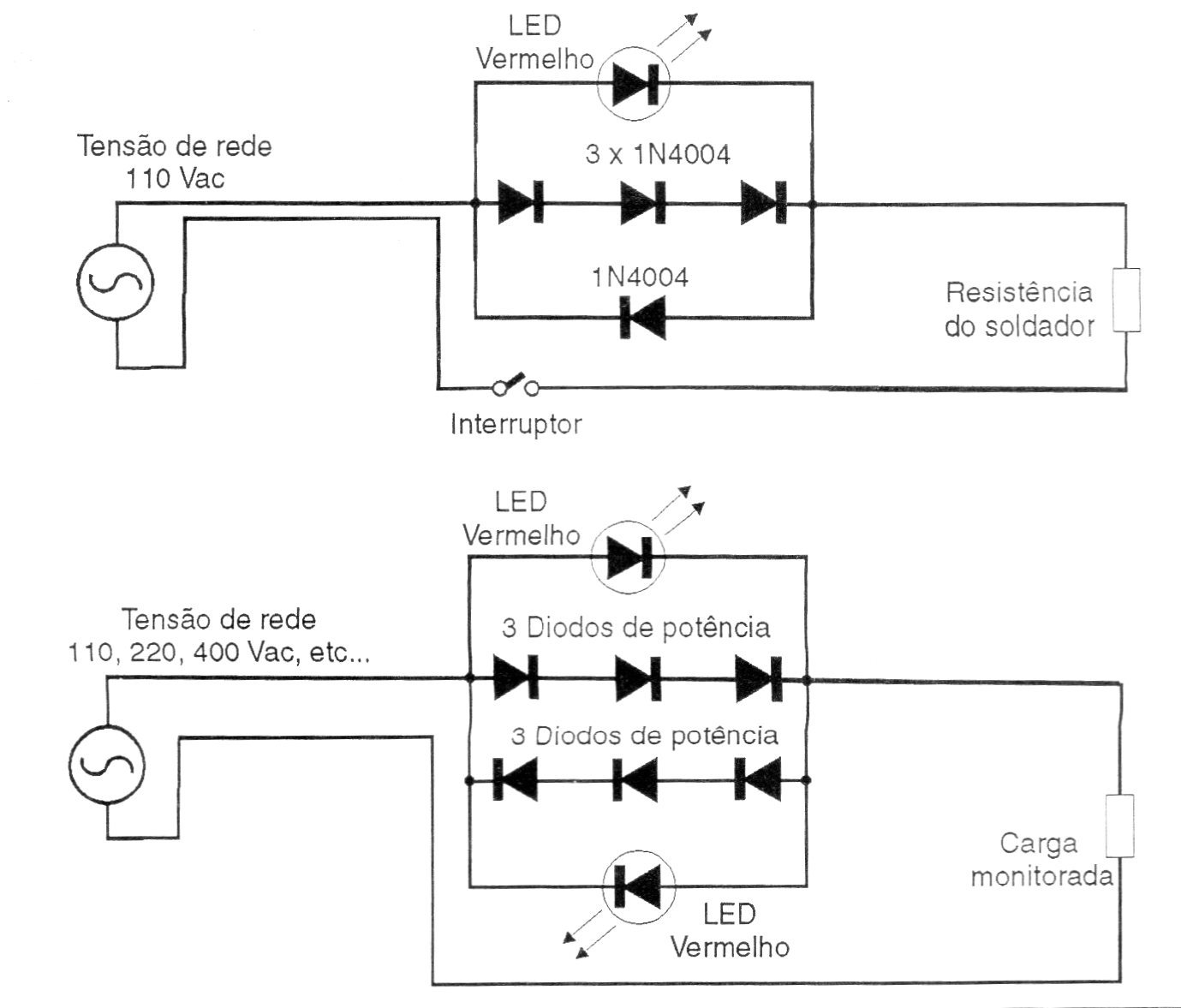

This simple indicator circuit, found in a 1997 documentation, indicates when a soldering iron up to 100 W is connected. The circuit has two versions with 1 and 2 LEDs. The diodes must have voltages of 200 V for the 110 (1N4004) network and 400 V for the 220 V (1N4007) network.




| Clique na imagem para ampliar |
