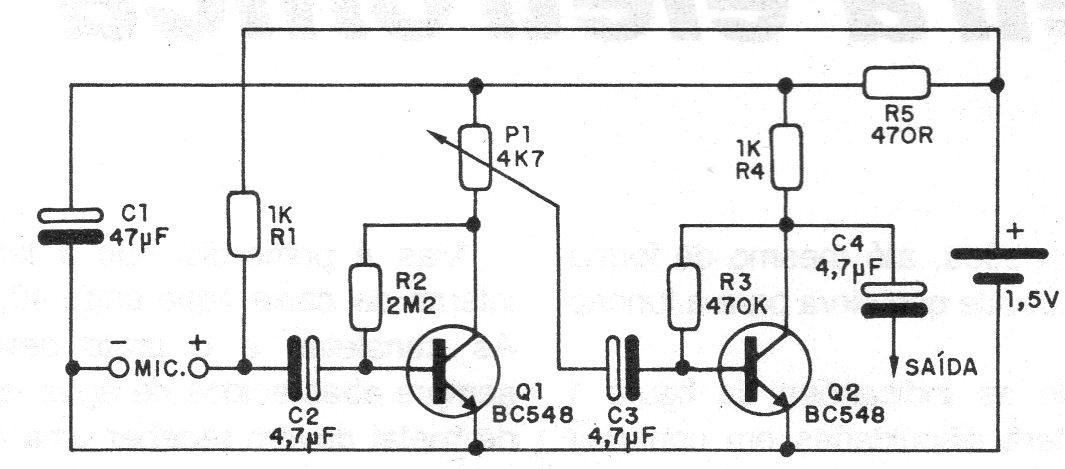

This simple general-purpose circuit was found in a 1987 publication. It is a simple preamplifier powered by a single battery, which can be used with microphones and other signal sources. Both the input and output signal cables must be shielded to avoid humming.
| Clique na imagem para ampliar |
