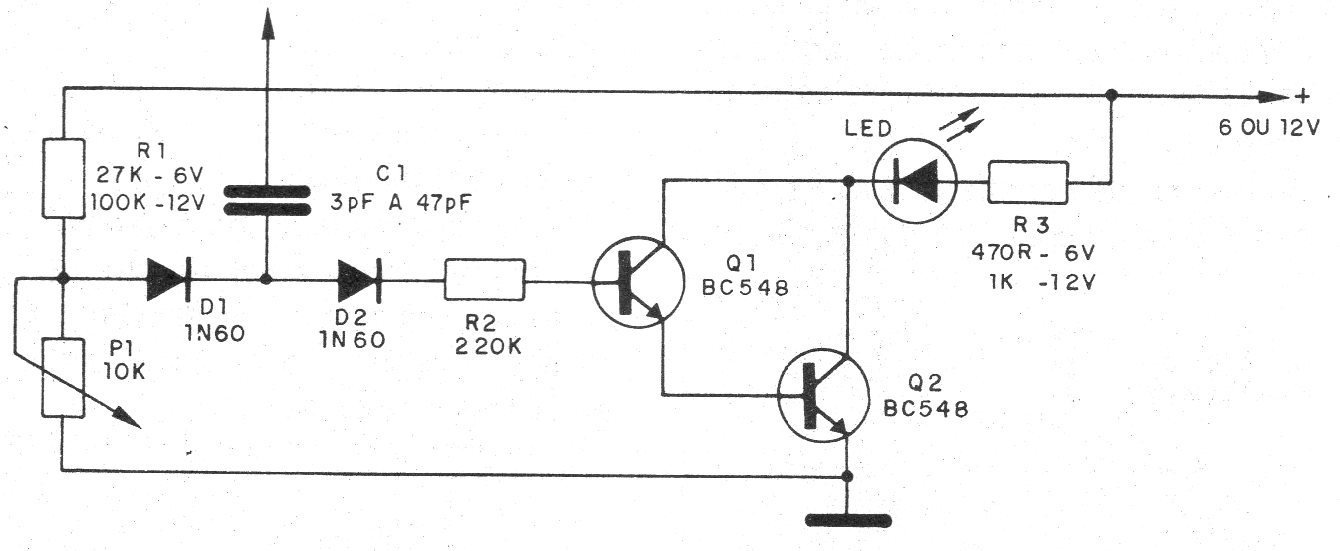

This circuit must have its input connected to the collector of the last IF transistor of the FM receiver. When a station is tuned in, the LED lights up. The circuit is from 1987 documentation and is powered by the receiver's own source.
