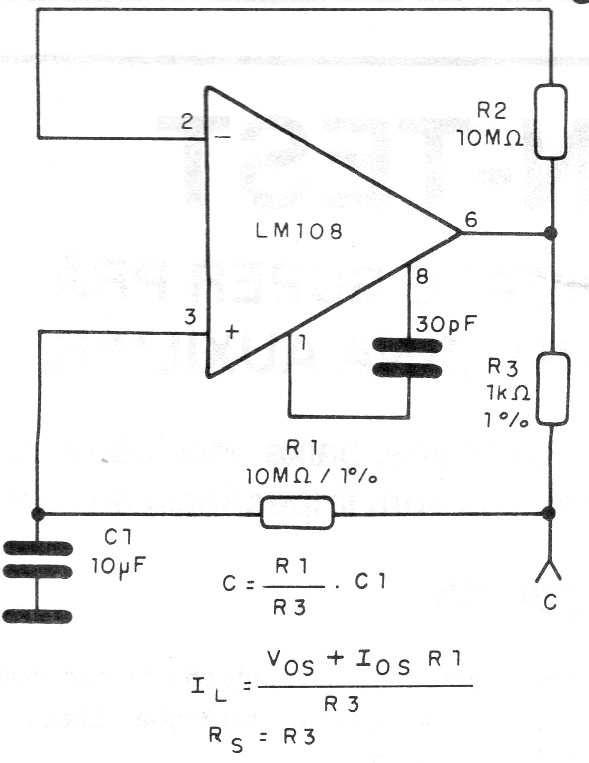

This is the conventional version of capacitance multiplier with operational amplifier that appears in other articles in this section. The source is symmetric and the formulas for calculating the components are given next to the diagram.
Capacitance Multiplier (CB16664E)
- Details
- Written by: Newton C. Braga
