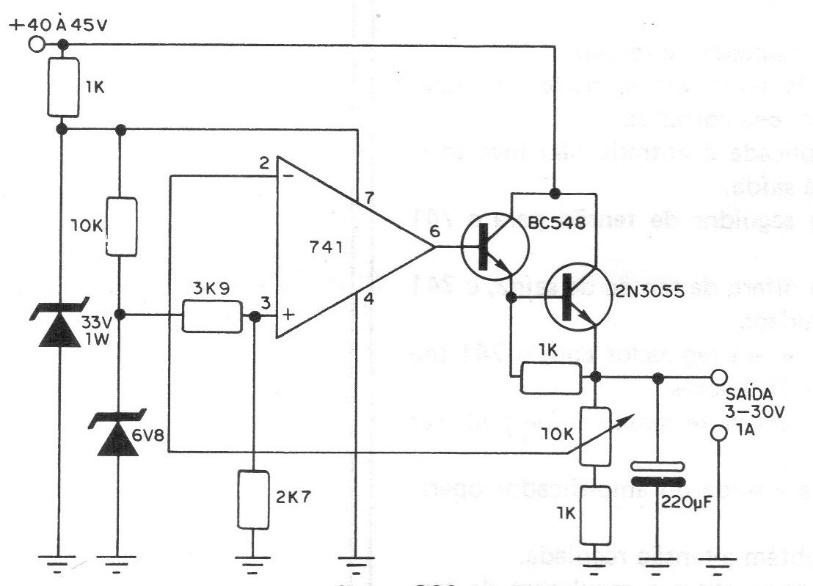

This adjustable regulator uses the 741 and power transistors and can supply a current of up to 1 A. The power transistor must have a heat radiator and the source does not need to be symmetrical. The input voltage must be between 40 and 45 V.
