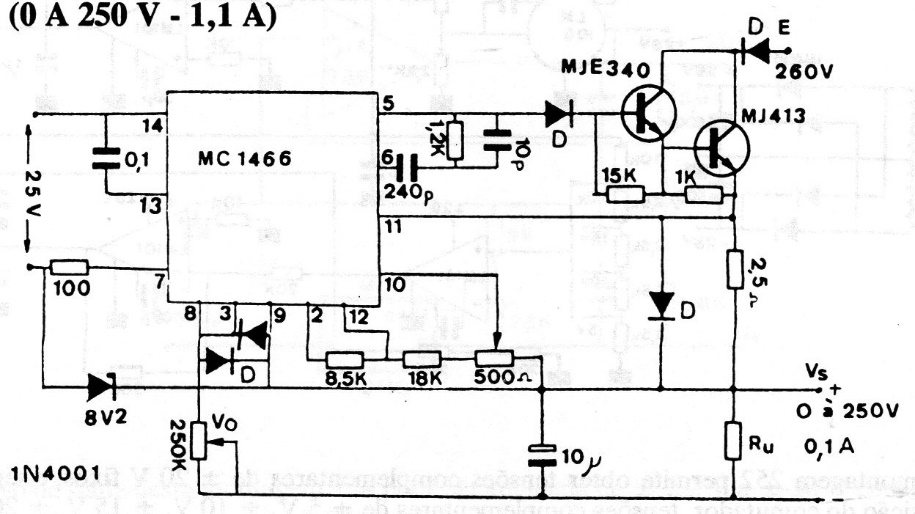

This high voltage regulator with variable output and current that reaches just over 1 A was found in old documentation. The integrated circuit is not very common today and the transistors admit equivalents. The power transistor must be equipped with a heat sink.
