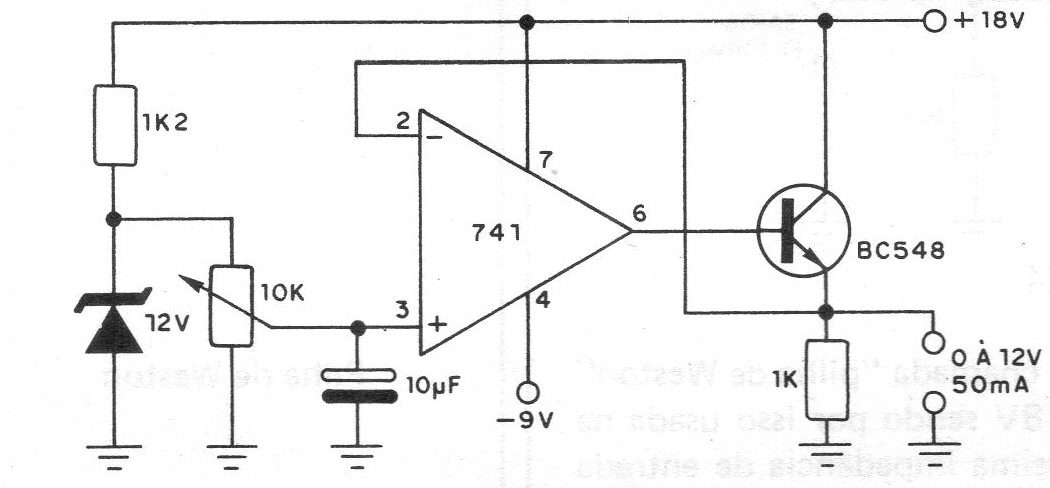

This low current regulator uses an operational 741 and a BC548 general-purpose transistor. The circuit may have other ranges of variation with the change of the zener and the power supply must be symmetrical. A little more current can be obtained with the use of a BC135. In this case, we can reach 500 mA.
| Clique na imagem para ampliar |
