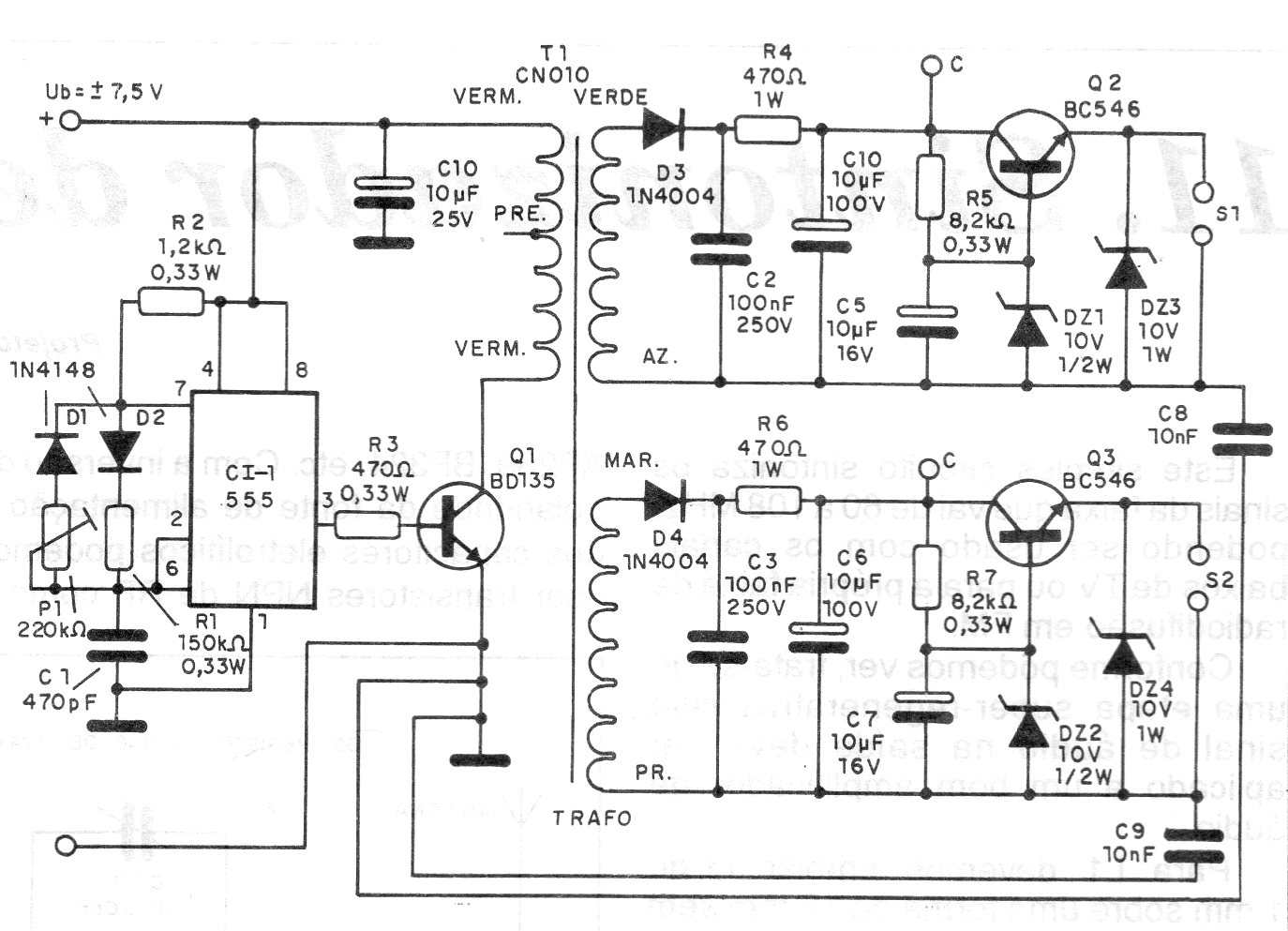

This switching power supply is ideal for LCD multimeters that use 9 V batteries (which spend quickly and cost a lot). The circuit is from 1992, but all components are current. The transistor Q1 must be provided with a heatsink and the contents must be supplied with voltage 5 V x 1 A.
| Clique na imagem para ampliar |
