Sound Effects (CB16617E)

Details
Written by: Newton C. Braga

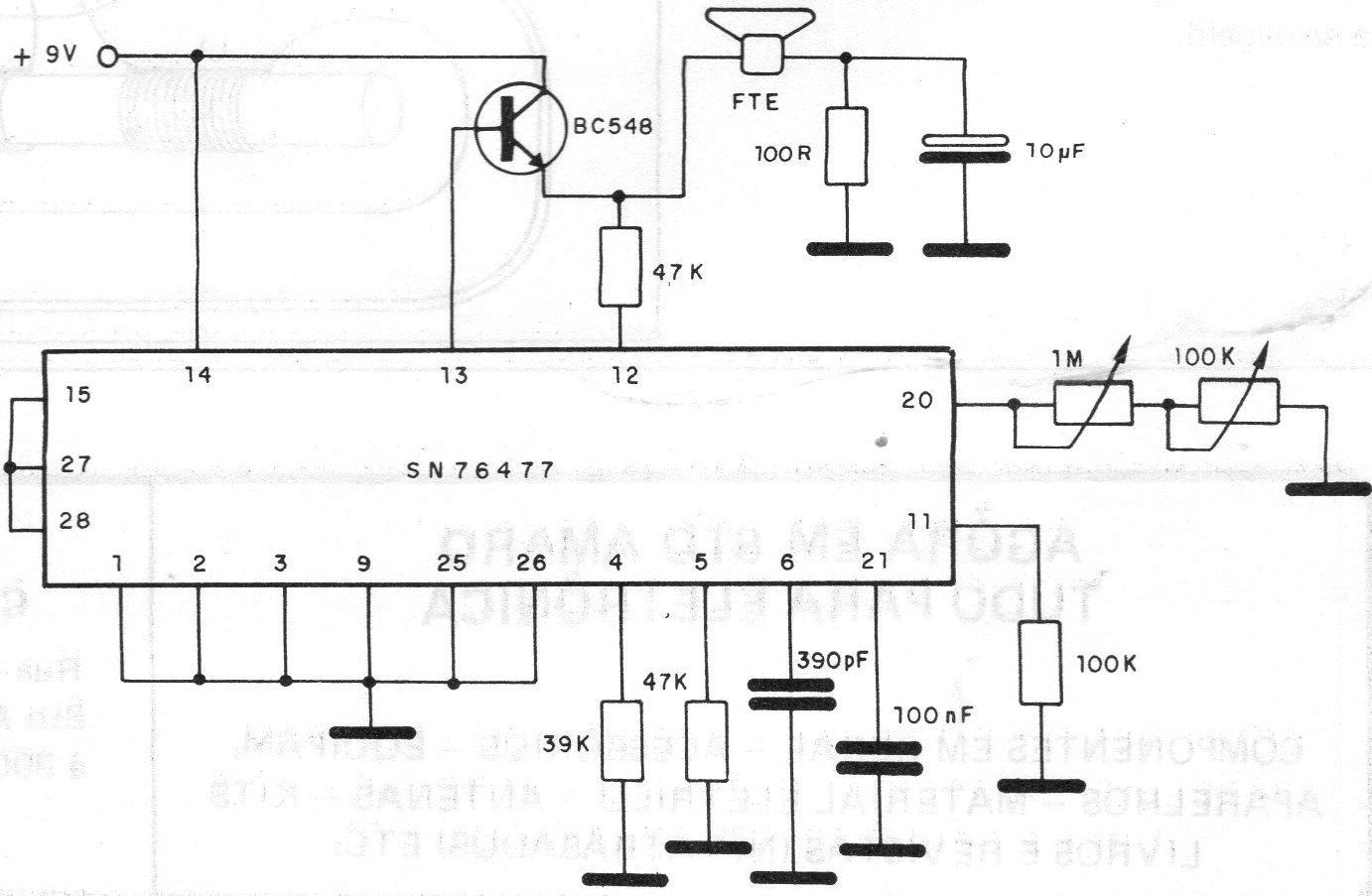

The integrated circuit used in this circuit from a 1987 documentation is no longer common today. This circuit can generate a multitude of different sounds and this circuit is an example of application.
