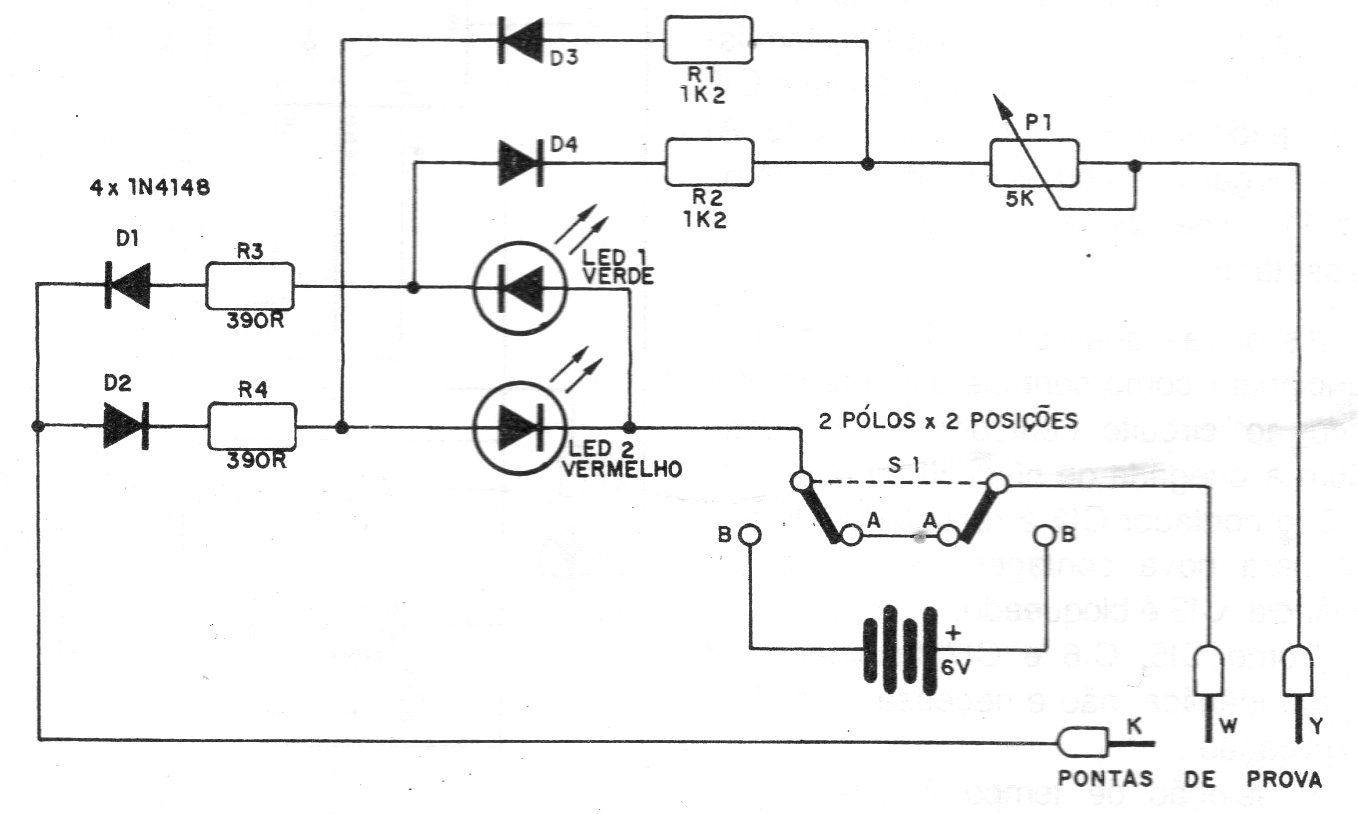

This circuit can be used to test continuity or even semiconductors. We found the configuration in a 1987 documentation. P1 adjusts the currents for the transistor test, depending on the gain. Power is provided from standard batteries.
