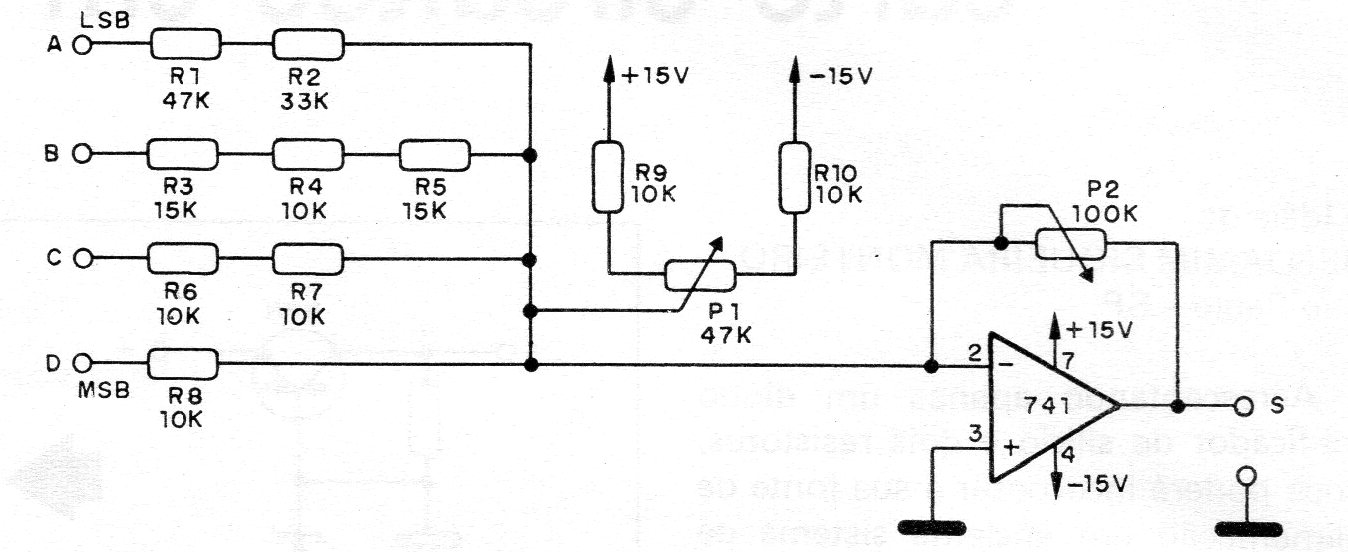

We found this circuit in a 1988 publication. The power supply for the operator must be symmetrical and the null adjustment is made in a trimpot. The accuracy of the input conversion depends on the accuracy of the adjusted resistors. Other operational amplifiers can be tested.
