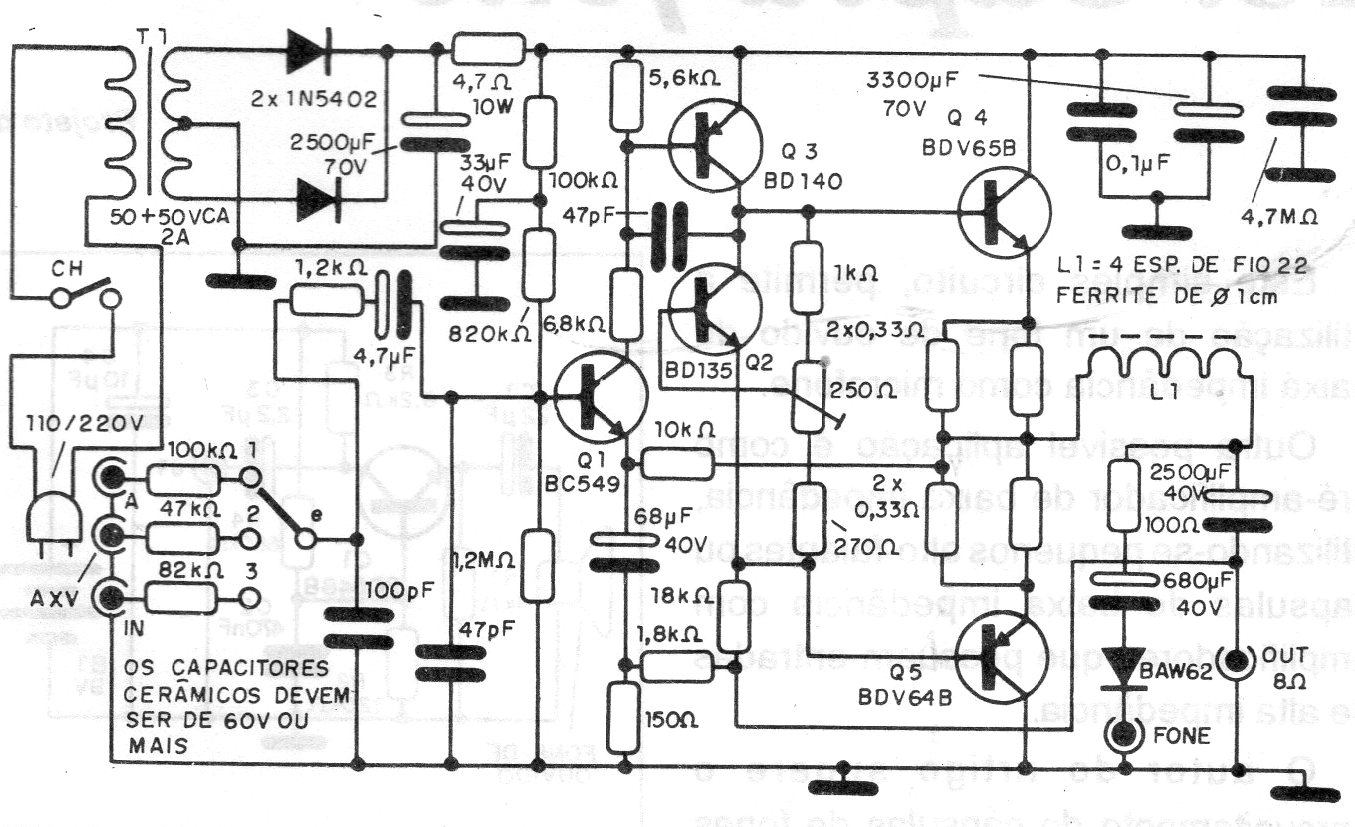

This circuit provides 70 W at 8 ohms and 100 W at 4 ohms. We found this amplifier in a 1992 documentation. The utmost care must be taken with the design of the board, which must have wide tracks for the high current lines. The output transistors must be equipped with excellent heat sinks.
