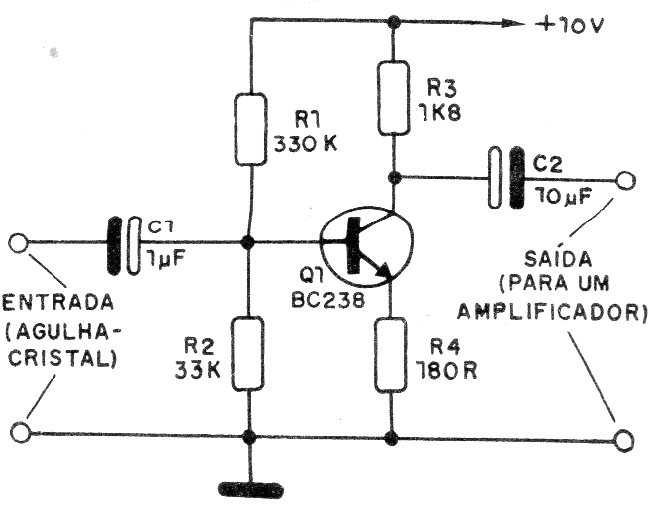

This traditional configuration was found in a 1988 publication. Its gain depends on the base resistors of the transistor and the consumption is very low. Signal input and output cables must be shielded.
| Clique na imagem para ampliar |
1-Transistor Preamplifier (CB16488E)
