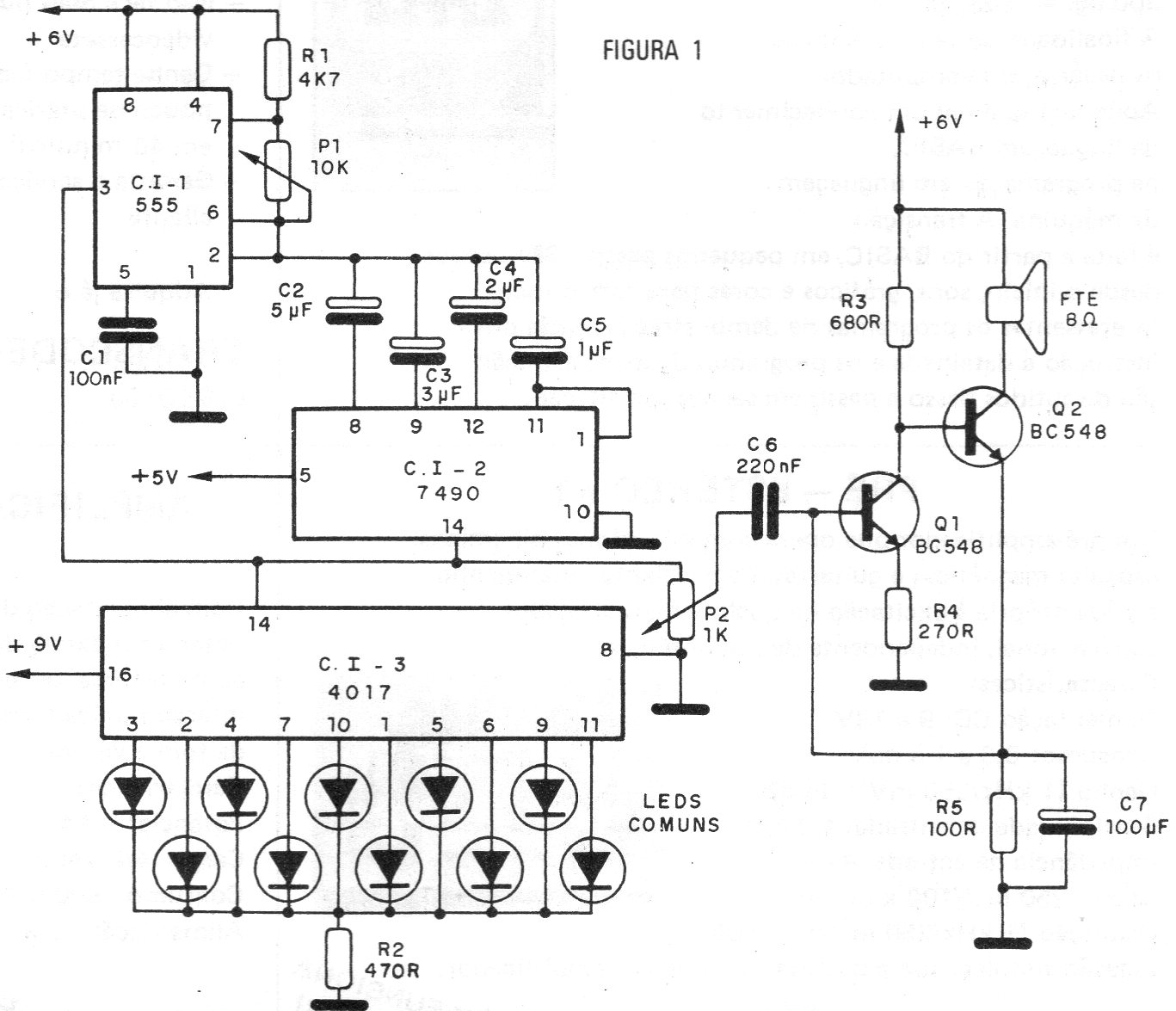

This sound effect circuit was found in a 1987 publication. It is a circuit that drives a set of sequential LEDs and, at the same time, emits sound. The 6 V power supply can be obtained from batteries or a source. Potentiometer P1 controls the speed of the effect and potentiometer P2 the emitted sound.
| Clique na imagem para ampliar |
