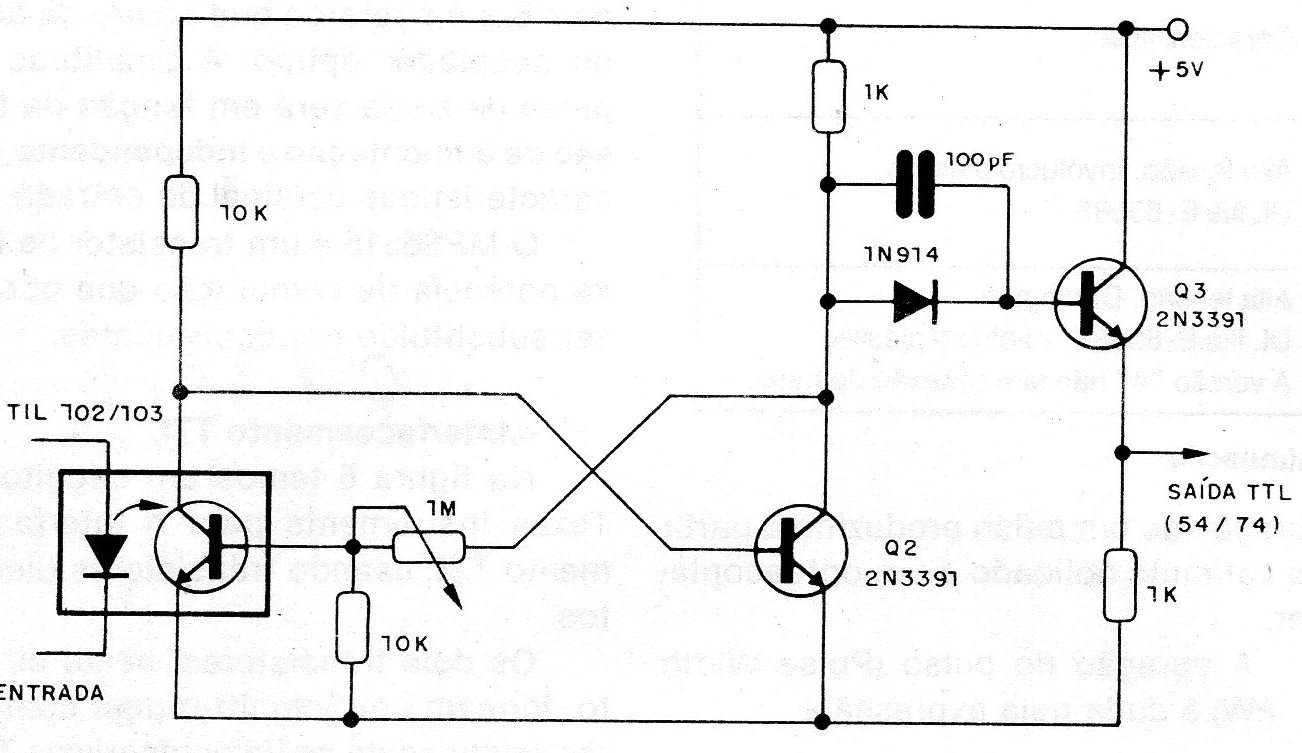

The Schmitt-trigger shown in the figure is TTL compatible and is shown in the figure using discrete transistors. This circuit has an adjustment that allows fixing the current in the absence of a signal and the output level. The transistors are switching and can be replaced by equivalents.
| Clique na imagem para ampliar |
