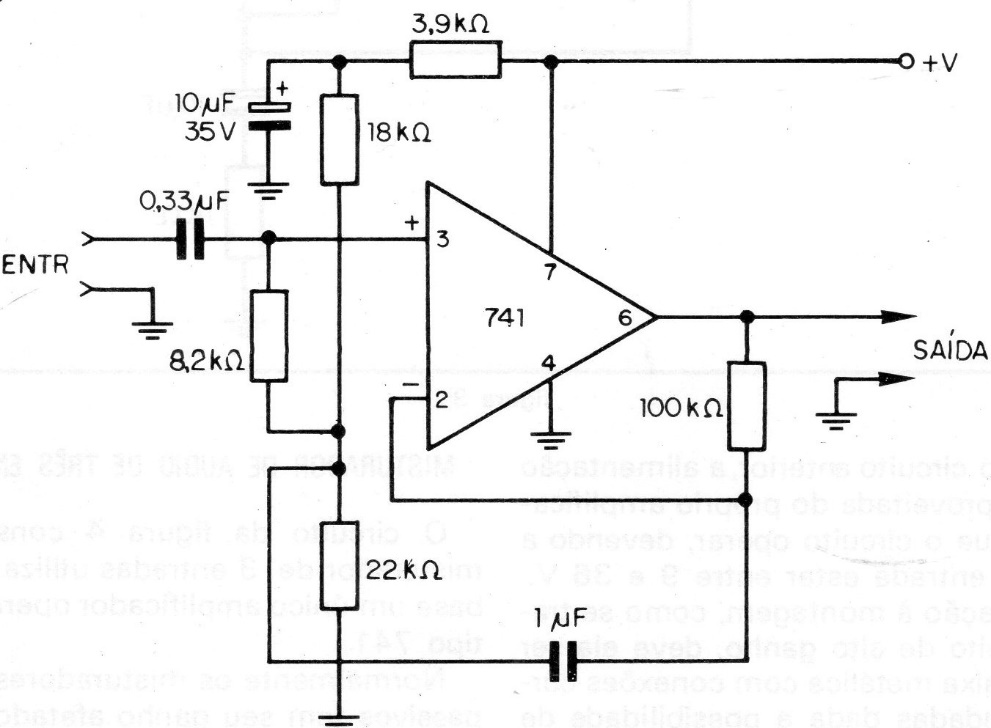

This version of the preamplifier is one of many that the reader will find on this website using the 741. This circuit was found in a 1977 documentation and does not need a symmetrical source. The supply can be made with voltages from 9 to 15 V and the signal cables must be shielded.
