Transistorized Amplifier (CB16786E)

Details
Written by: Newton C. Braga

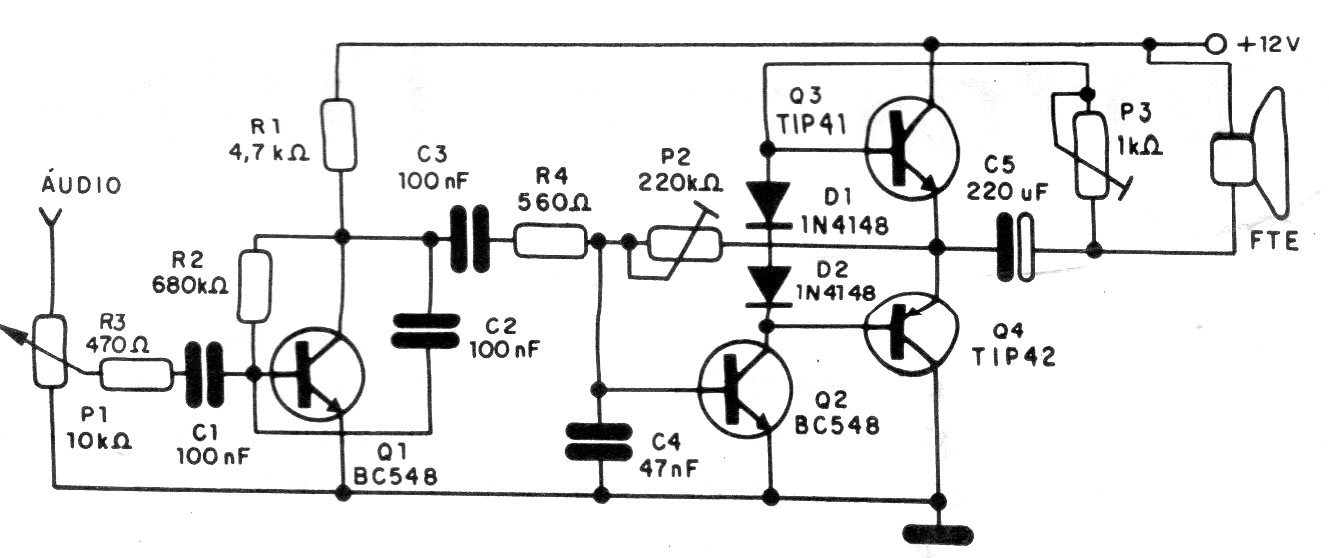

This circuit provides a few watts of output and can be used in the car as an auxiliary amplifier. Transistors must be mounted on heatsinks and the speaker can be 4 ohms or 8 ohms.
