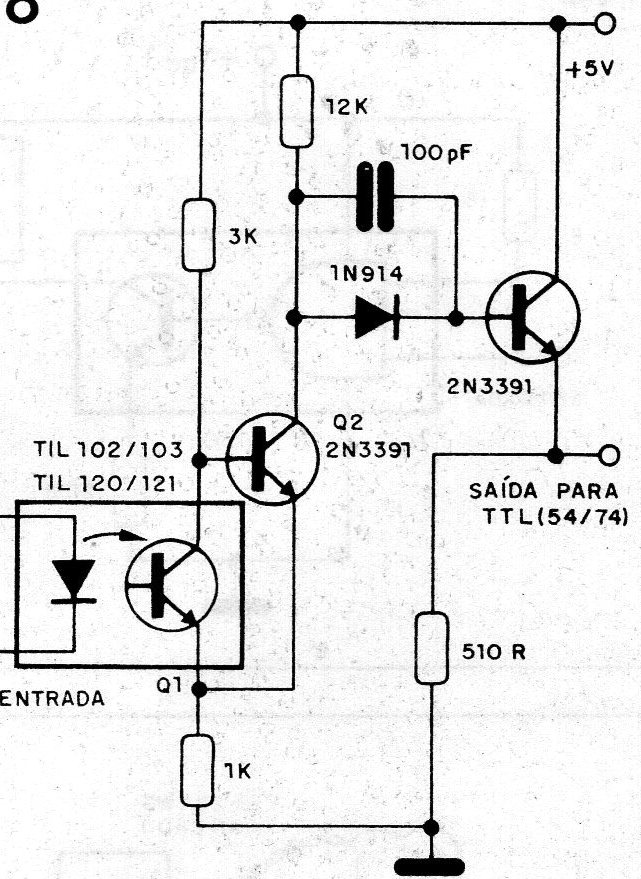

In the figure we have a Texas Instruments circuit for TTL interfacing using discrete transistors. The two transistors in this circuit form a Schmitt-trigger with TTL compatible output characteristics. Note that the power supply is 5 V.
