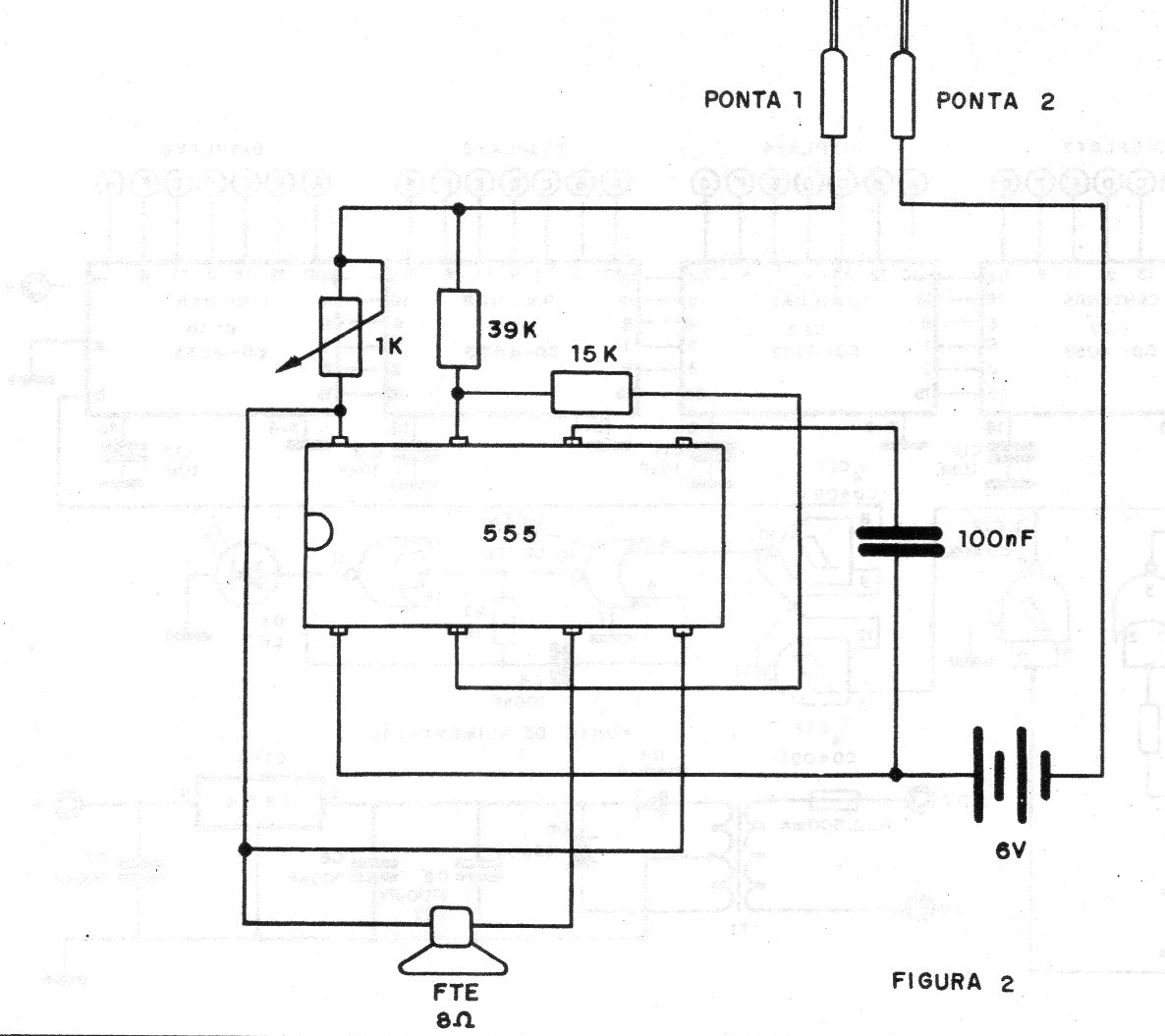

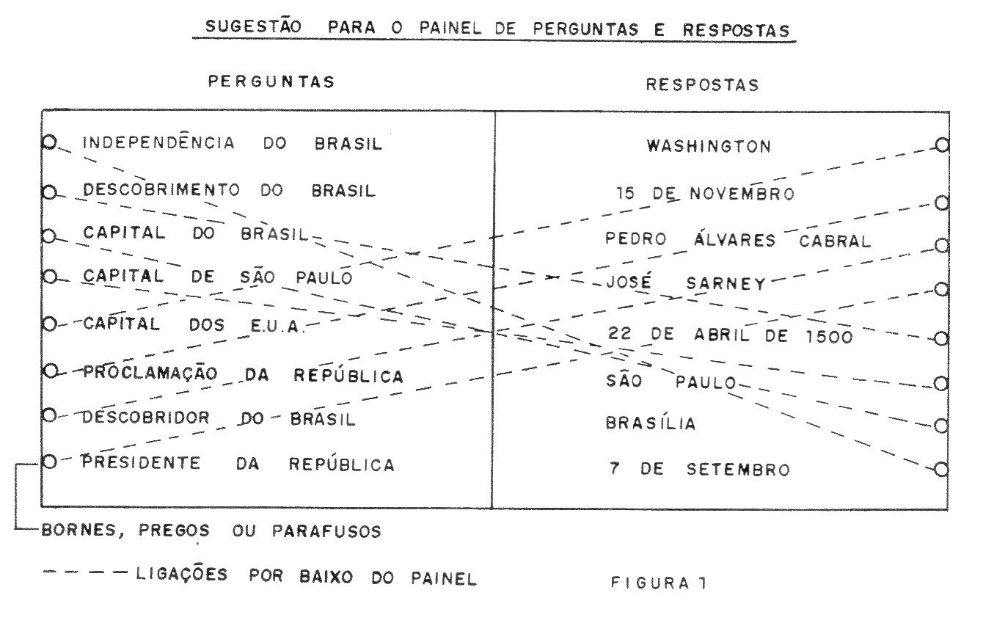

This simple circuit of a question-answer minicomputer with tray was found in a 1987 magazine. The oscillator that makes the sound indication of the right answer uses a 555 and is powered by ordinary batteries. The subjects chosen for questions and answers are up to the reader.
| Clique na imagem para ampliar |
| Clique na imagem para ampliar |
