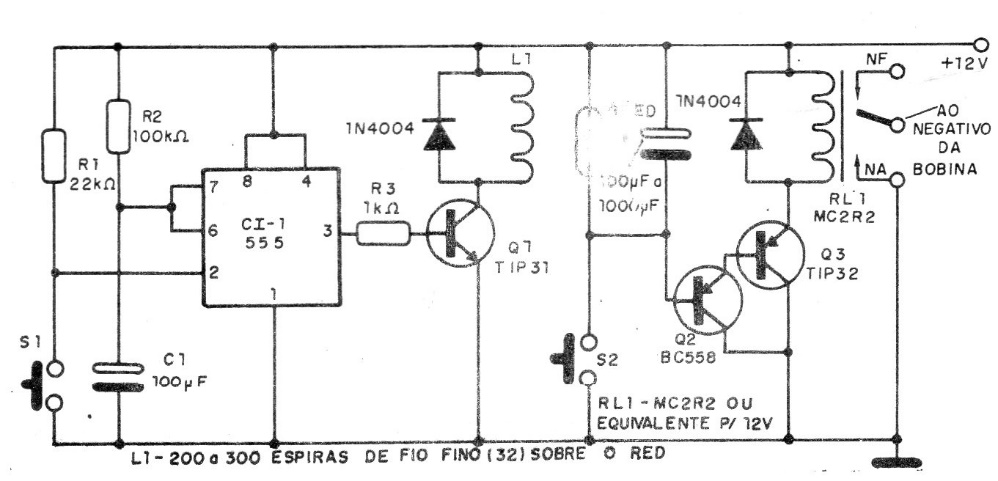

This circuit immobilizes a vehicle approximately 1 minute after the theft. The circuit can also be used in other applications, such as activating an alarm after one minute the sensors are triggered. The circuit is powered by 12 V and in the case of vehicles it can disable the battery or the ignition system.
| Clique na imagem para ampliar |
