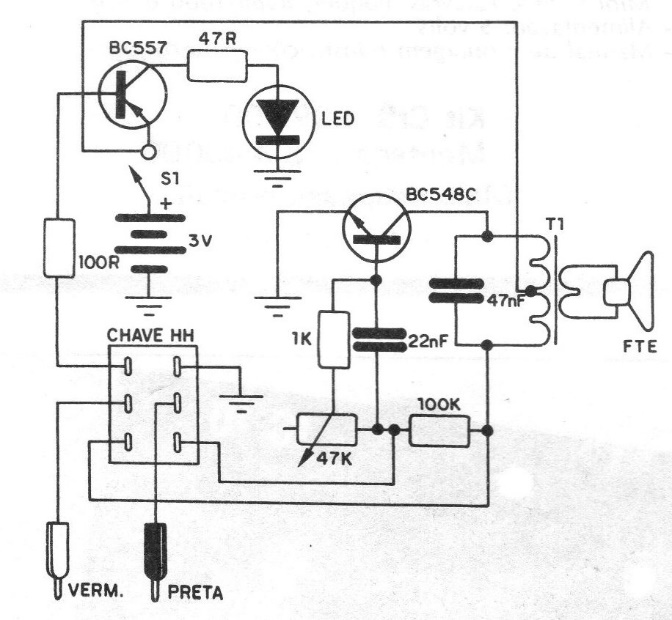

The author of this project from a 1982 publication took advantage of other projects that we published and thereby managed to increase the range of utilities in his circuit. According to the author, the tester can check the status of both small value capacitors. as well as high-value resistors. The complete circuit, which has, in addition to the original designs, only an H switch, is shown in the figure. The transformer is an output type for transistor radios and the BC548 or BC238 type transistor must have a "C" gain range for greater circuit performance (the letters after the type of transistor, usually A, B and C, indicate their gain range, with "C" being the highest gain). The main switch, which turns the device on and off, can be connected to the potentiometer. The speaker is small at 8 ohms, and all resistors are 1 / 8W, with any tolerance. Capacitors can be either ceramic or metallized polyester.
