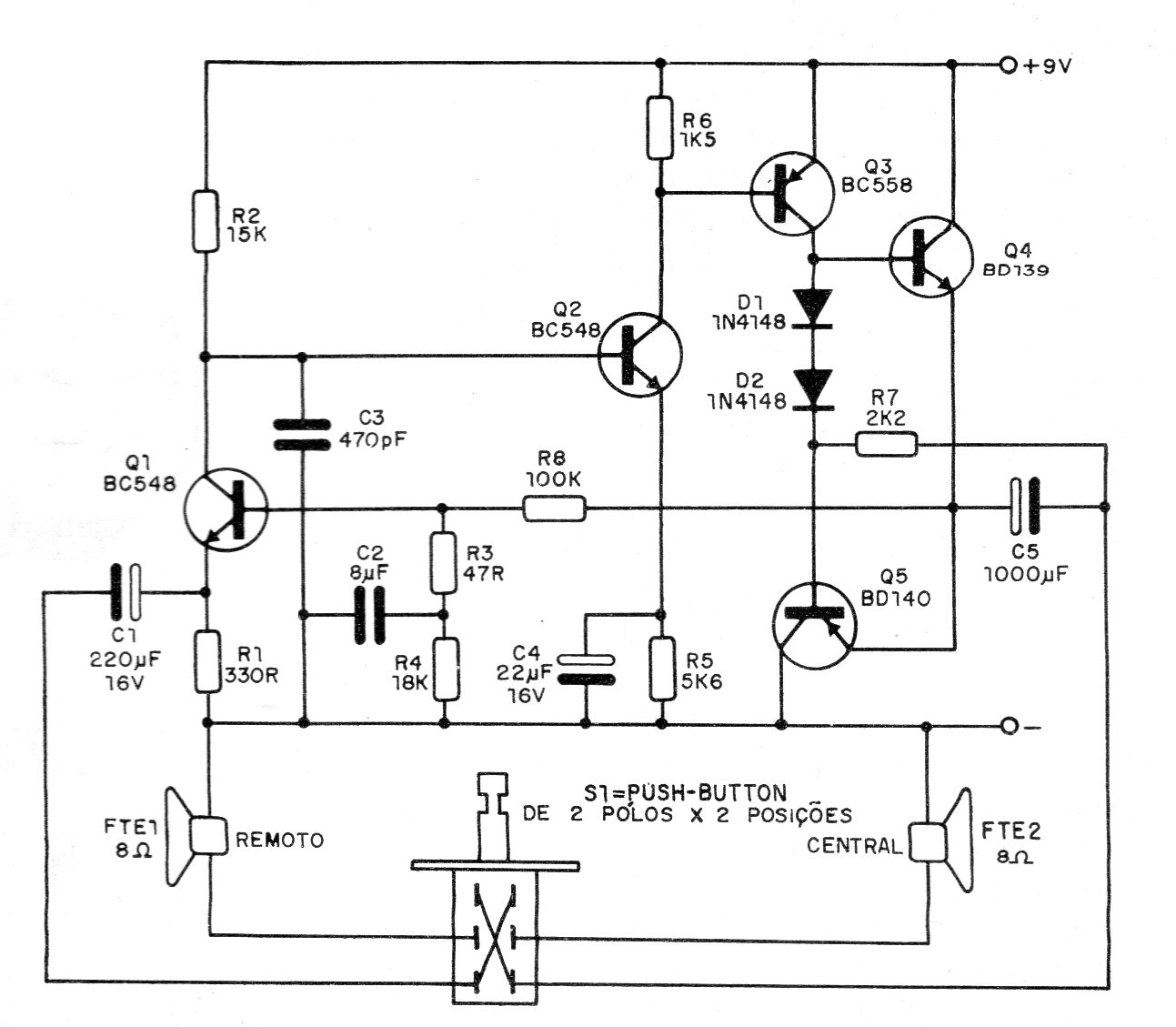

We found this circuit in a 1988 documentation. The circuit uses a conventional complementary amplifier with power transistors equipped with small heat sinks. The maximum distance between stations is about 20 meters. The power can be supplied by a 6 to 12 V source and the speakers are small 10 cm.
| Clique na imagem para ampliar |
